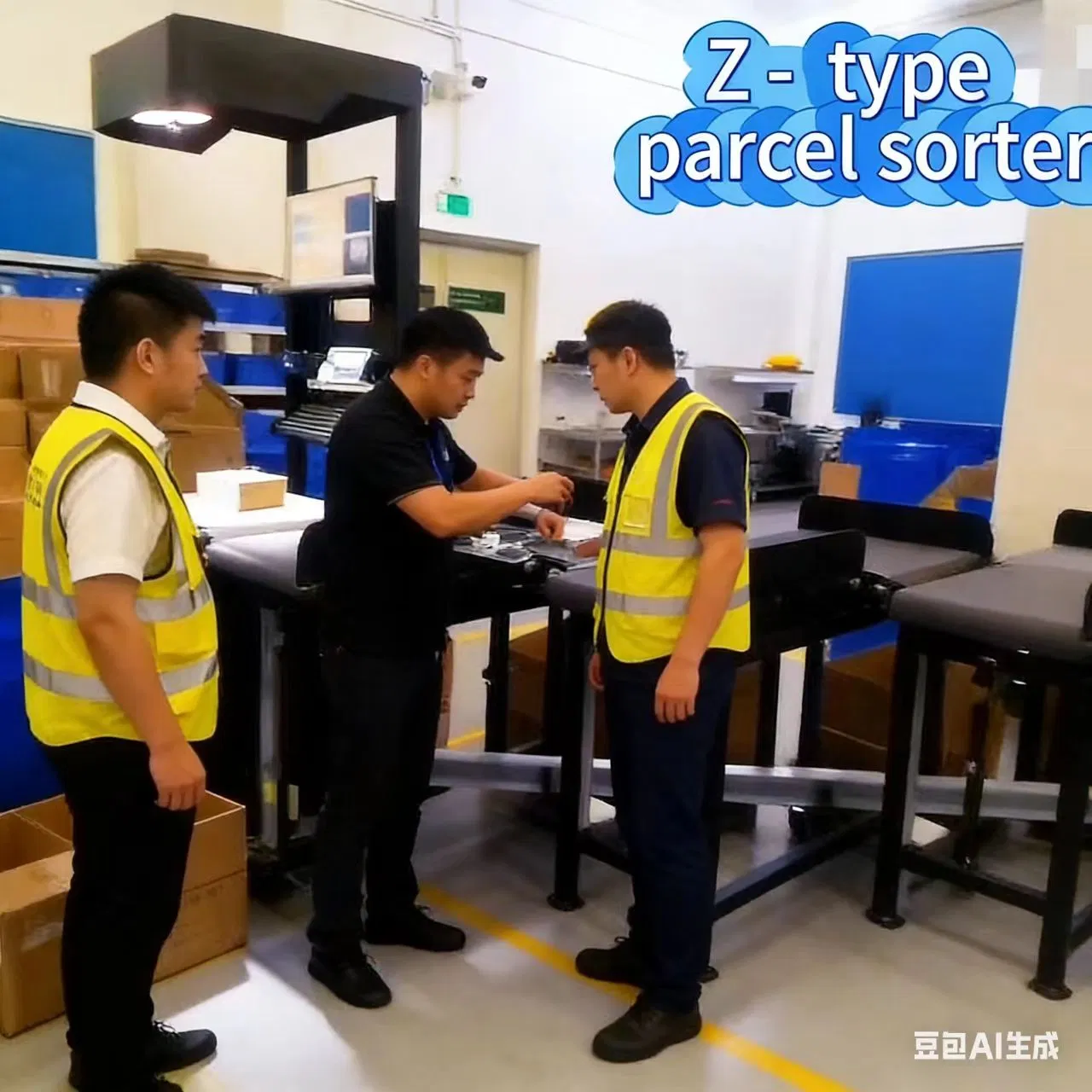

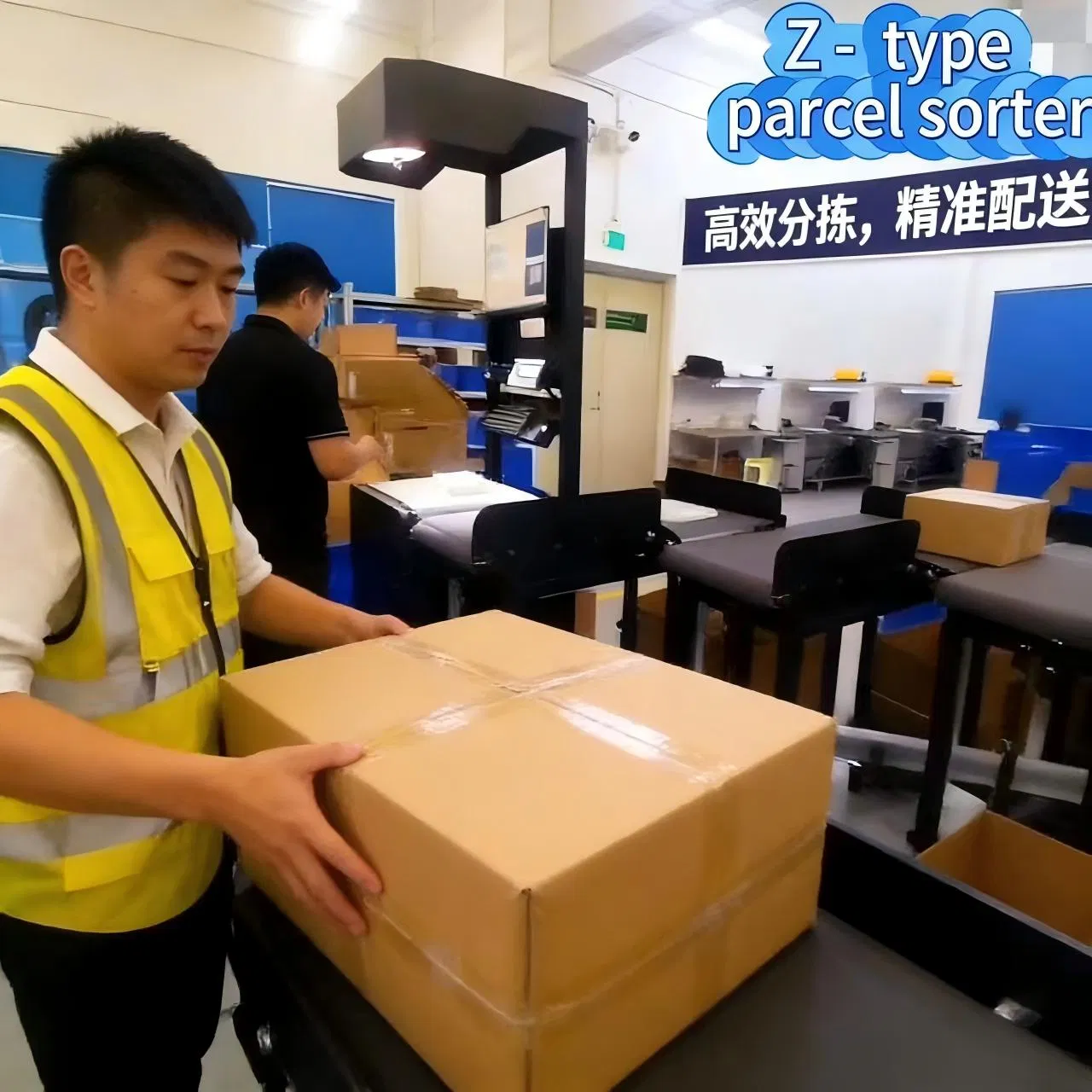

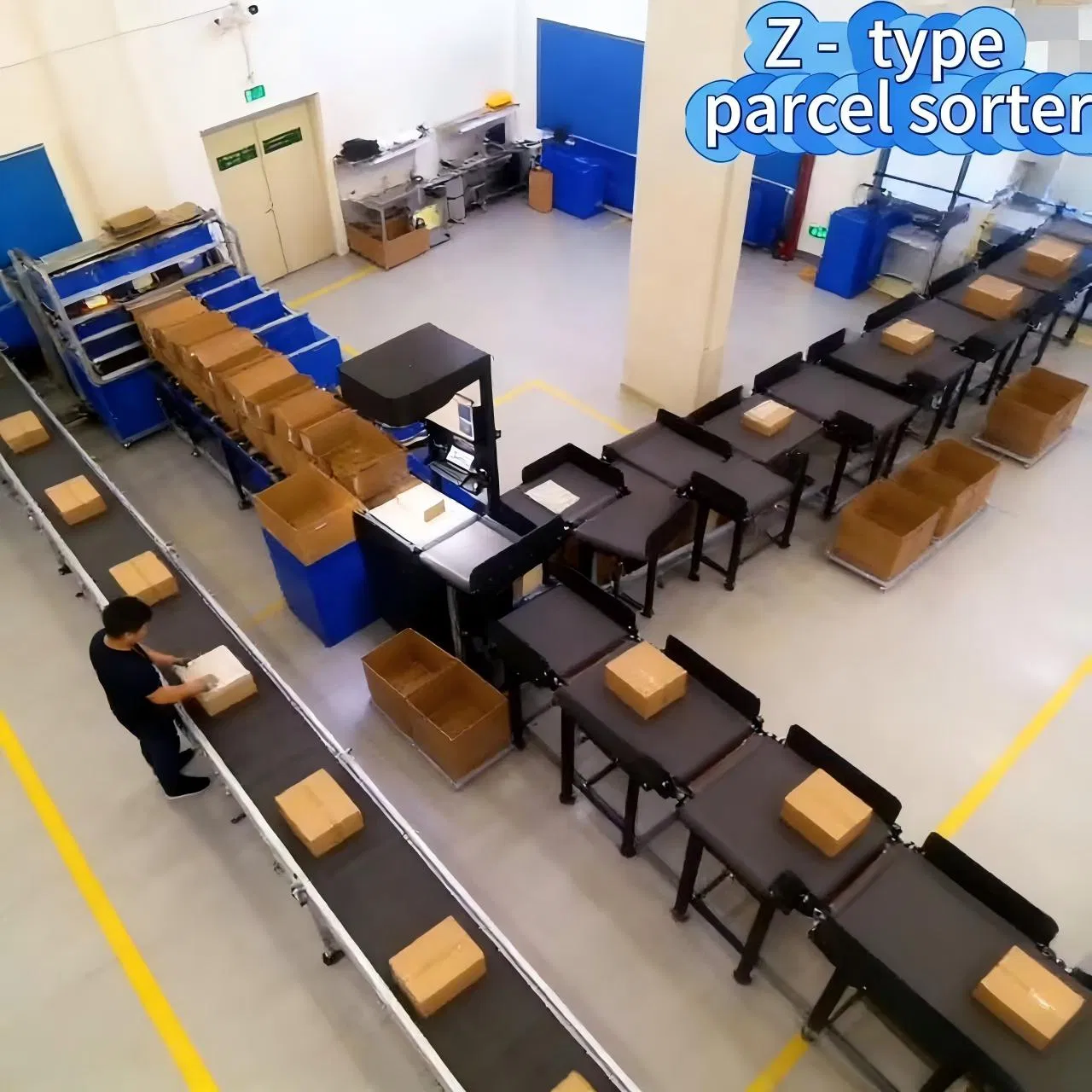

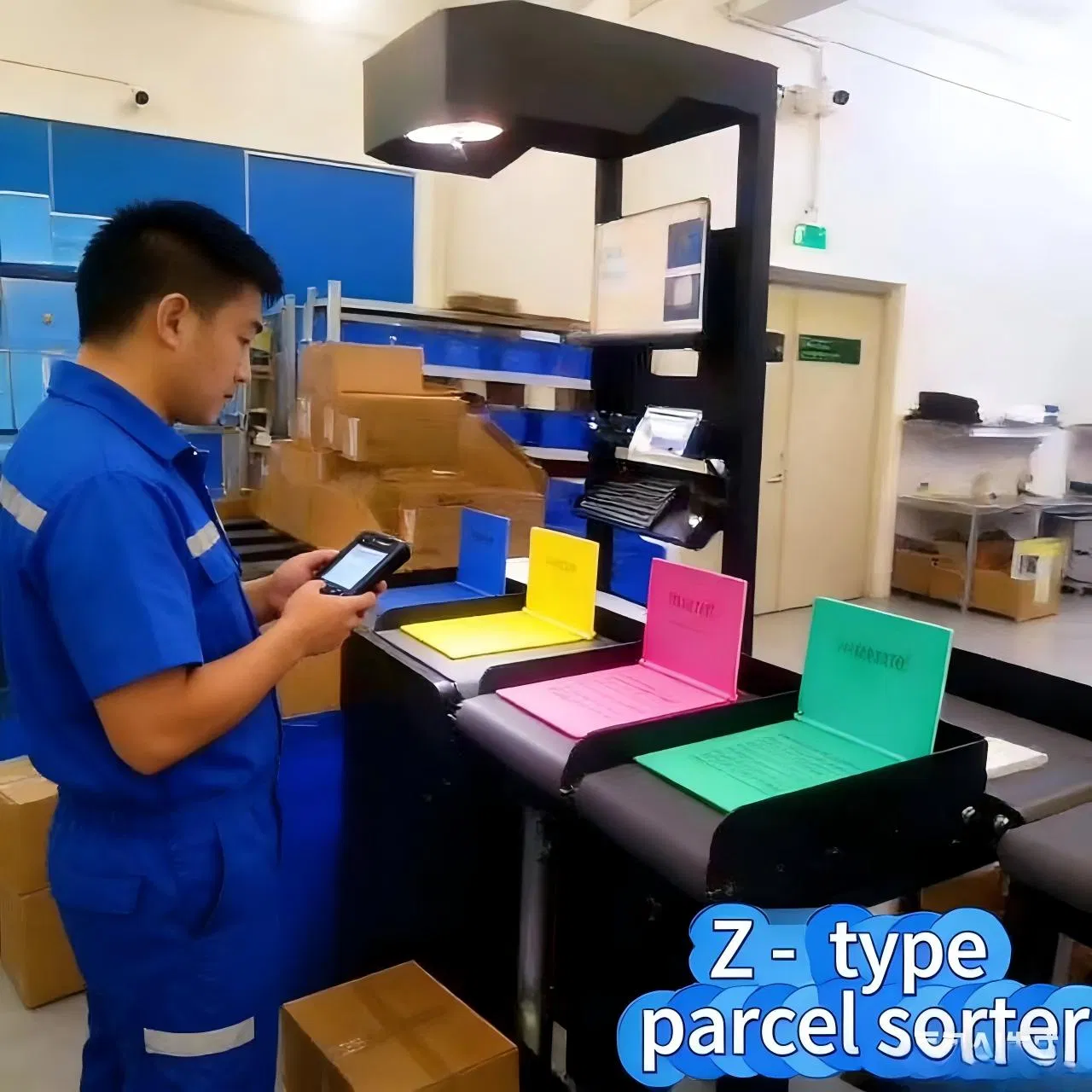

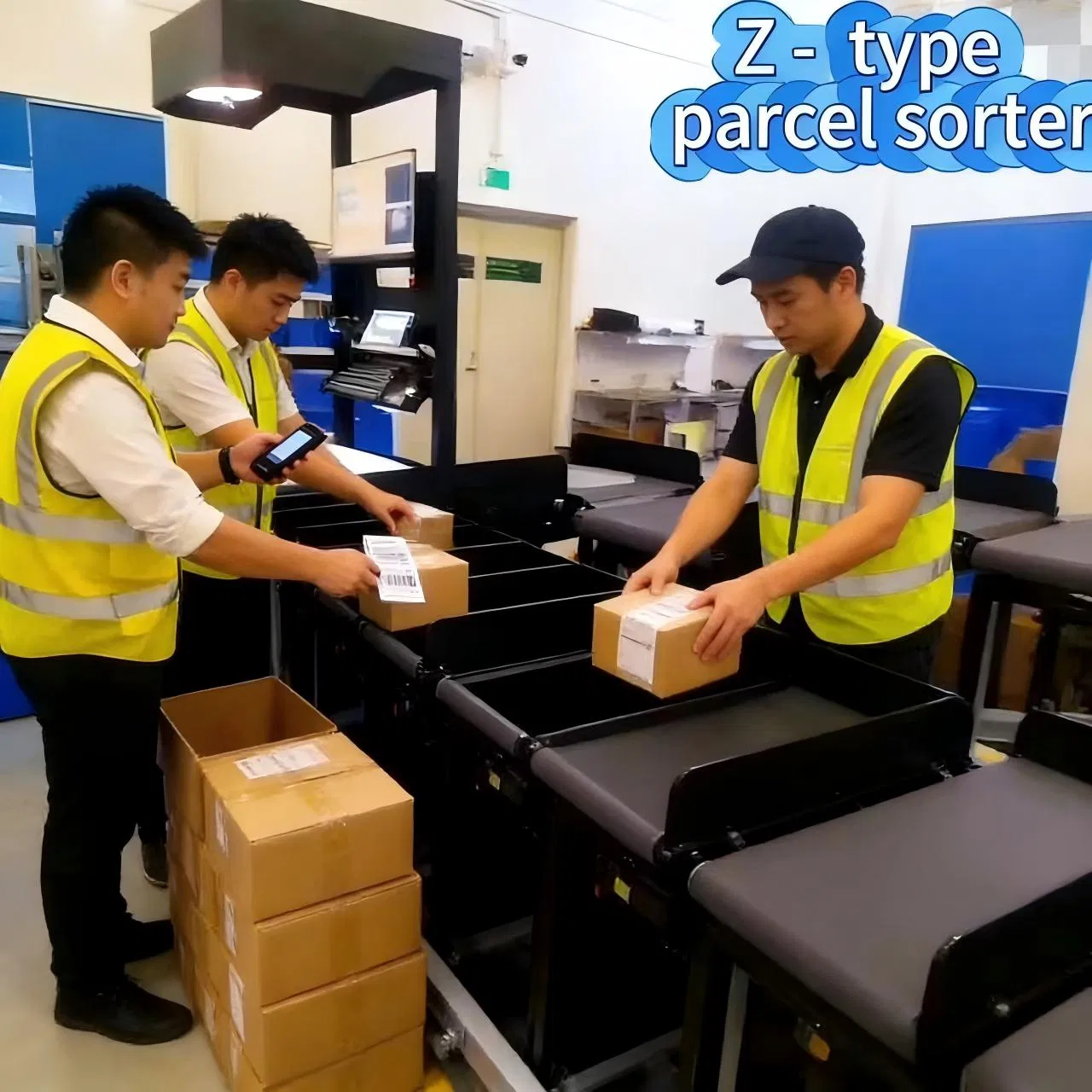

The linear cross-belt sorting system is a sorting device developed specifically for small and medium-sized distribution centers. It features a wide application range, small floor space, high efficiency with low energy consumption, and high cost-effectiveness. The system works with the feeding system to enable efficient and accurate processing by the main sorting machine. It can also be connected to a telescopic unloading machine to achieve automatic parcel feeding.
| Technical Parameter | Standard Specification |
|---|---|
| Sorting Efficiency | 8,000 - 15,000 Pcs/hr |
| Operating Speed | 1.0 - 1.5 m/s |
| Standard Pitch | 300/400/500 mm |
| Barcode Recognition Rate | 99.9% |
| Max Parcel Dimension | ≤420 * 650 * 400 mm |
| Loading Weight | 0.05 - 5 kg |
| Floor Area Requirement | 100 - 400 m² |
| Staffing Requirement | 2 - 10 Persons |
Consists of Feeding System, Sorting Cart, Main Control System, and Unload System.
Reinforced steel tracks with adjustable tension for long-term stability.
Intelligent monitoring panel equipped with comprehensive fault diagnostics.
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
We are a leading manufacturer of material handling equipment with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
