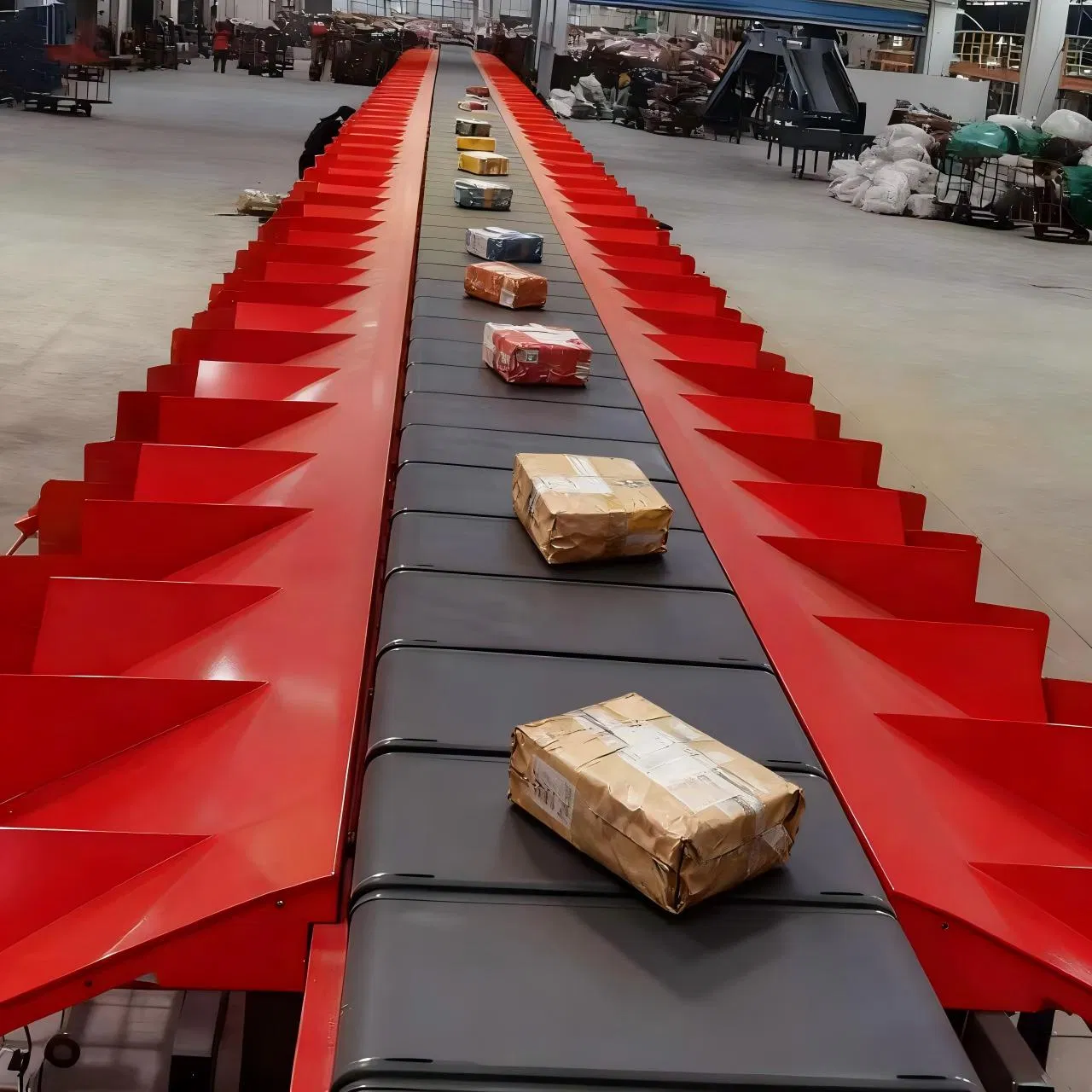

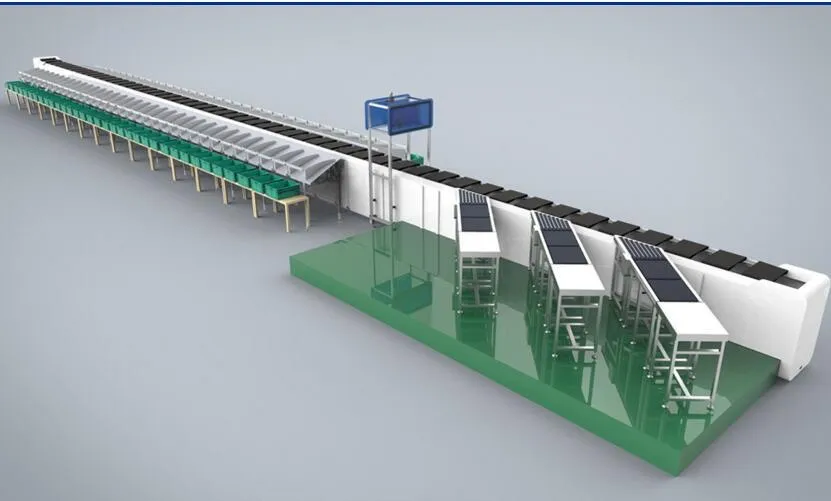

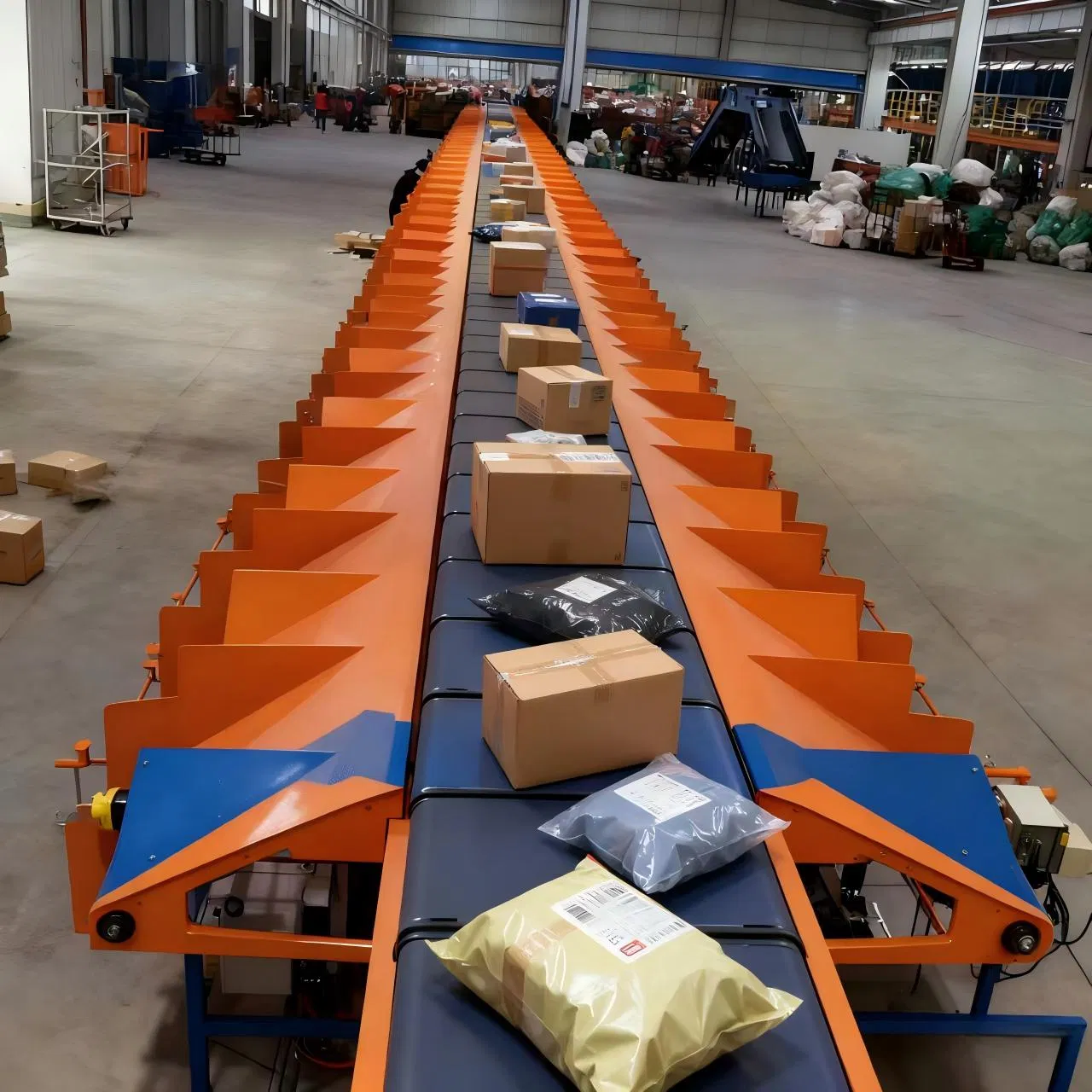

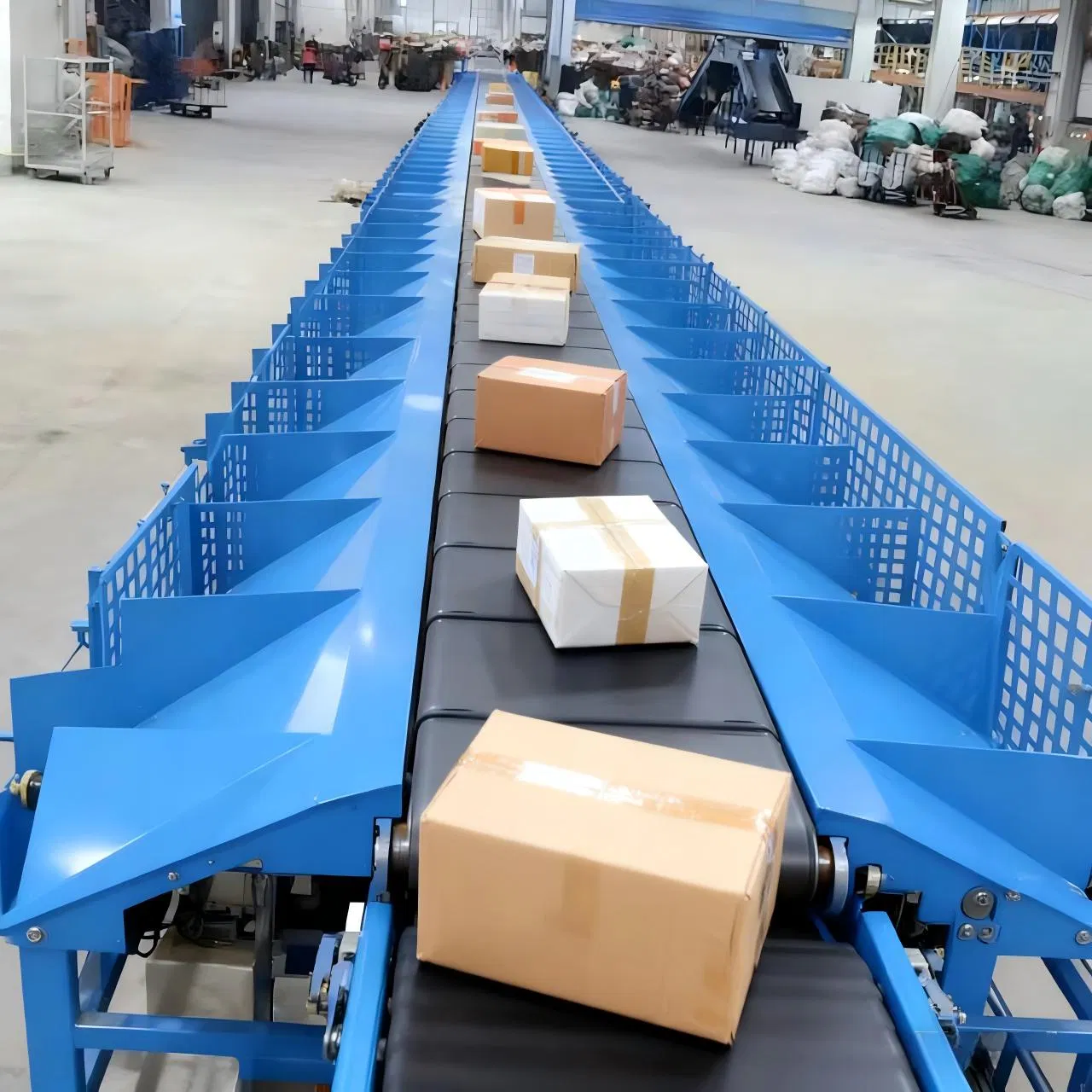

The narrow-belt sorter is a variant of the linear sorter. Its cart pitch is reduced to 150mm-200mm, and the cart length is extended to 1 meter, forming a strip shape—hence the name "narrow-belt sorter". This equipment has a small footprint and high flexibility in grid planning. It is often used with pallets and electric forklifts, and is suitable for network outlets or transit sites that mainly handle small quantities of tickets and medium-to-large parcels.
(Custom configurations available upon request)
| Parameter | Details |
|---|---|
| Model | Narrow Belt Sorting Conveyor |
| Sorting Efficiency (Pcs/hr) | 8,000 – 18,000 |
| Operating Speed (m/s) | 1.0 – 2.0 |
| Standard Pitch (mm) | 150 |
| Barcode Recognition Rate | 99.9% |
| Parcel Dimension (mm) | 100*100*1 — 1500*800*700 |
| Loading Weight (kg) | 0.05 - 50 |
| Floor Area (m²) | 100 – 400 |
| Personnel Required | 2 – 10 Employees |
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements, ensuring seamless integration into your existing facility.
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training sessions.
