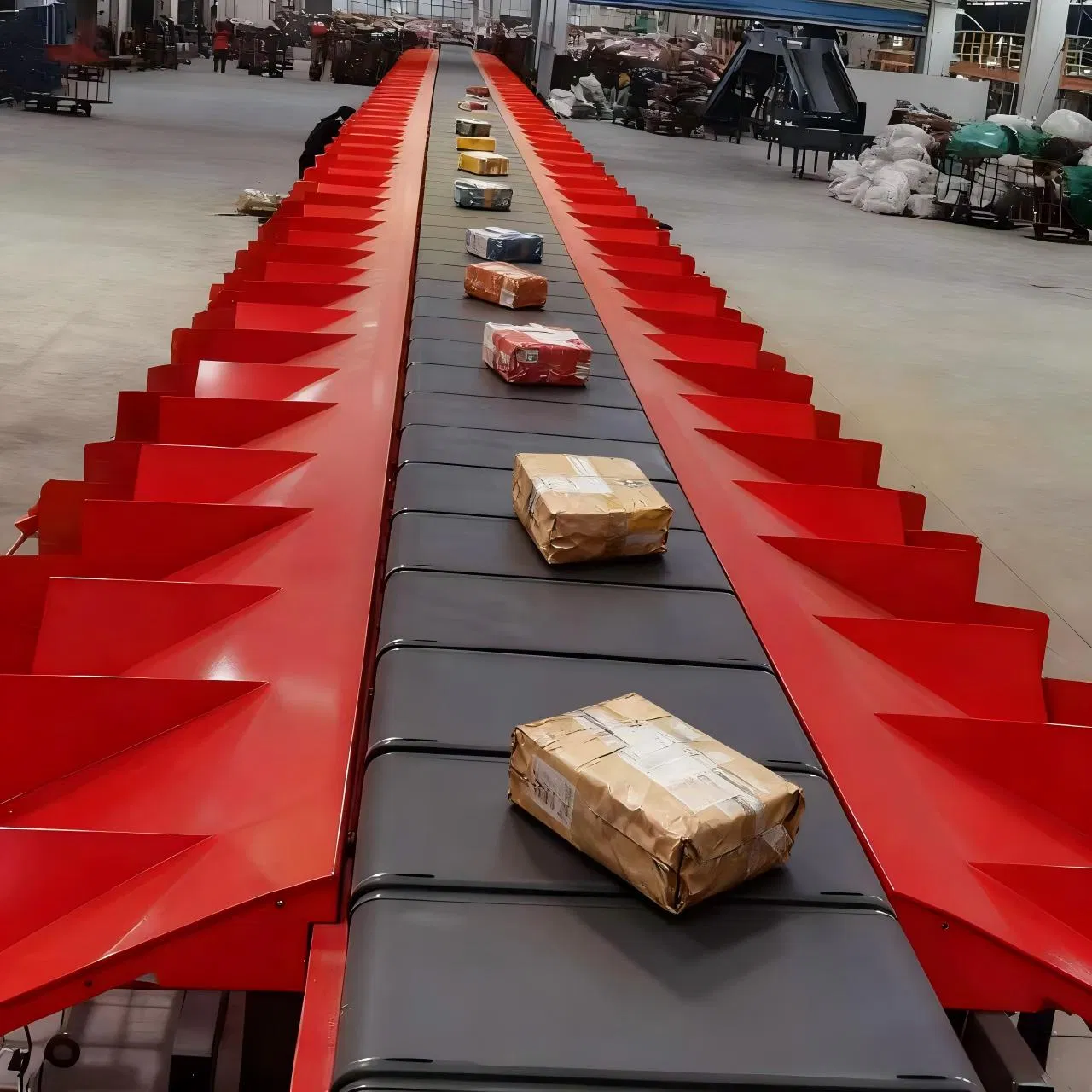

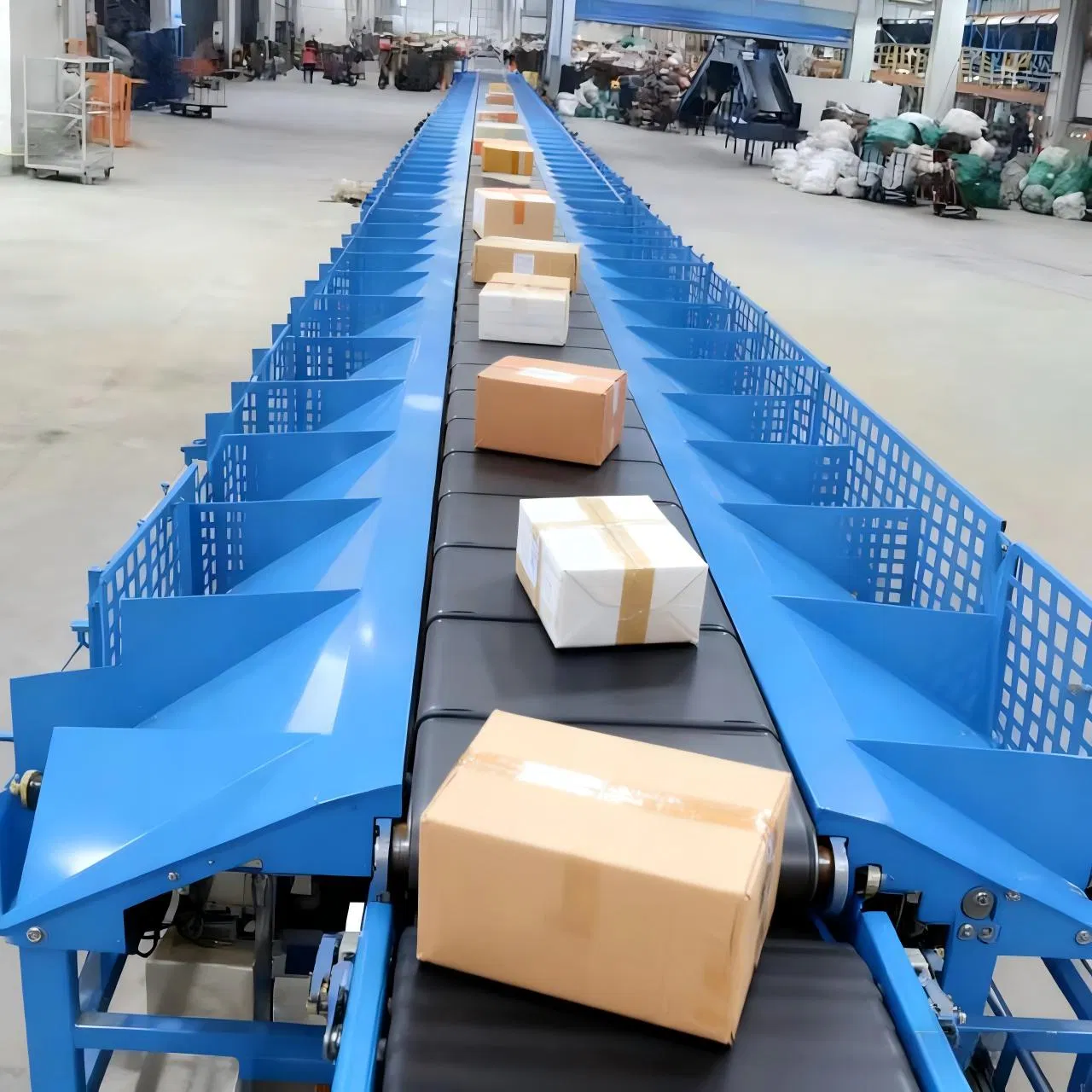

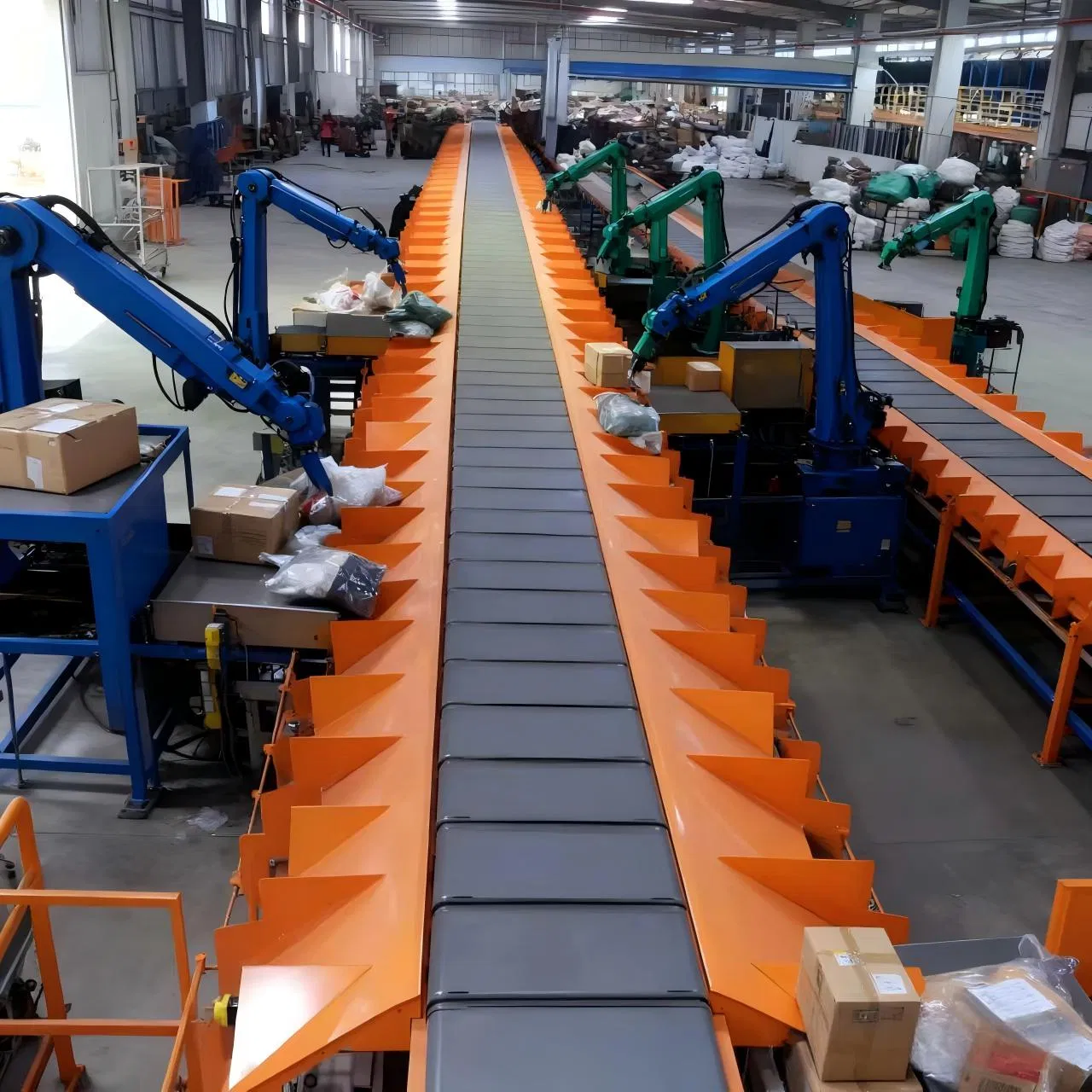

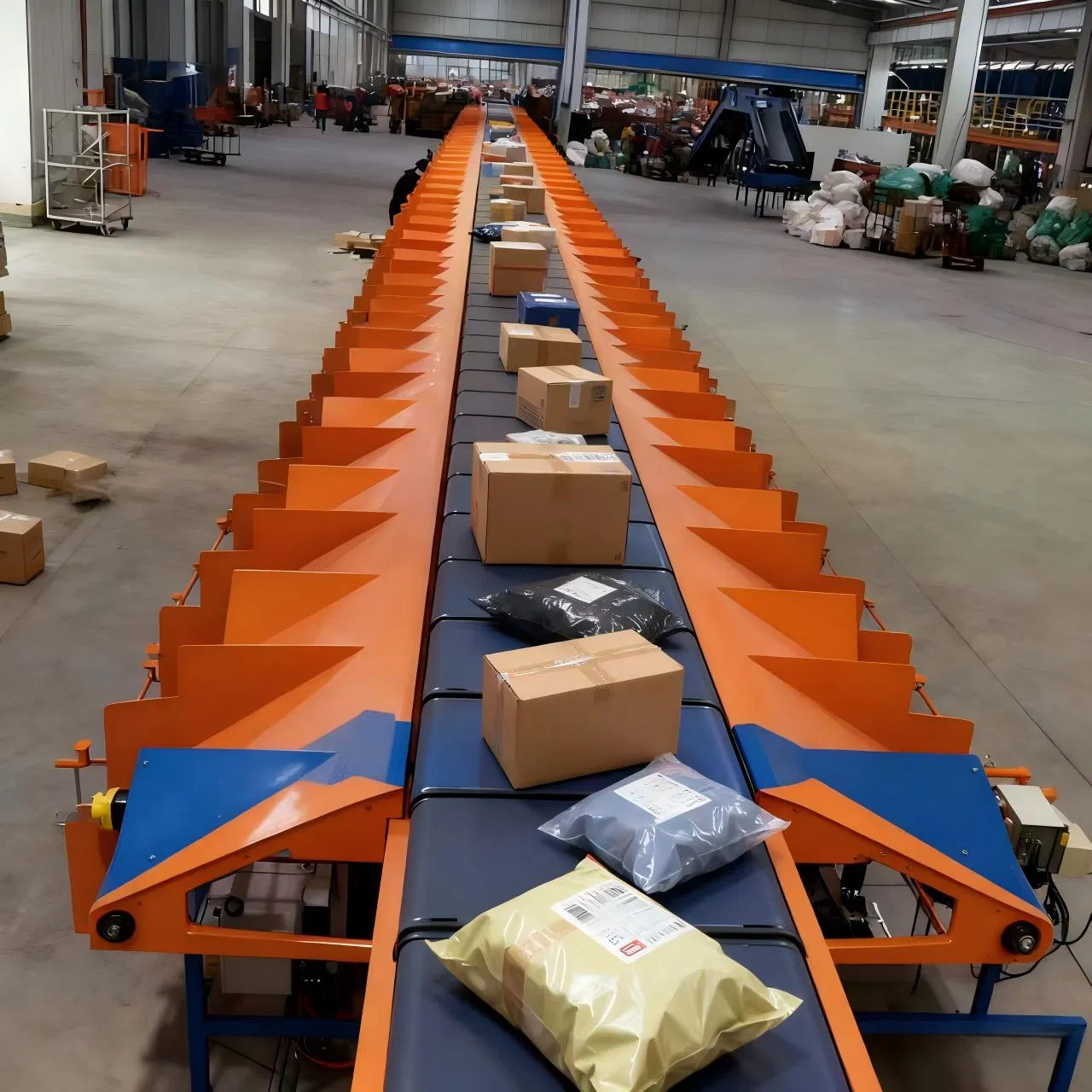

The linear cross-belt sorting system is a sorting device developed specifically for small and medium-sized distribution centers. It features a wide application range, small floor space, high efficiency with low energy consumption, and high cost-effectiveness. During feeding, users only need to place express parcels with the waybills facing up into the designated area; the system then works with the feeding system to enable efficient and accurate processing by the main sorting machine. It can also be connected to a telescopic unloading machine to achieve automatic parcel feeding.
| Model Parameter | Technical Specifications |
|---|---|
| Model | Linear Cross Belt Conveyor Sorter |
| Sorting Efficiency(Pcs/hr) | 8000--15000 |
| Operating Speed (m/s) | 1.0---1.5 |
| Standard Pitch(mm) | 300/400/500 |
| Barcode Recognition Rate | 99.9% |
| Parcel Dimension(mm) | ≤420*650*400 |
| Loading Weight(kg) | 0.05--5 |
| Floor Area (m²) | 100--400 |
| Number of Employees (Person) | 2---10 |
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
