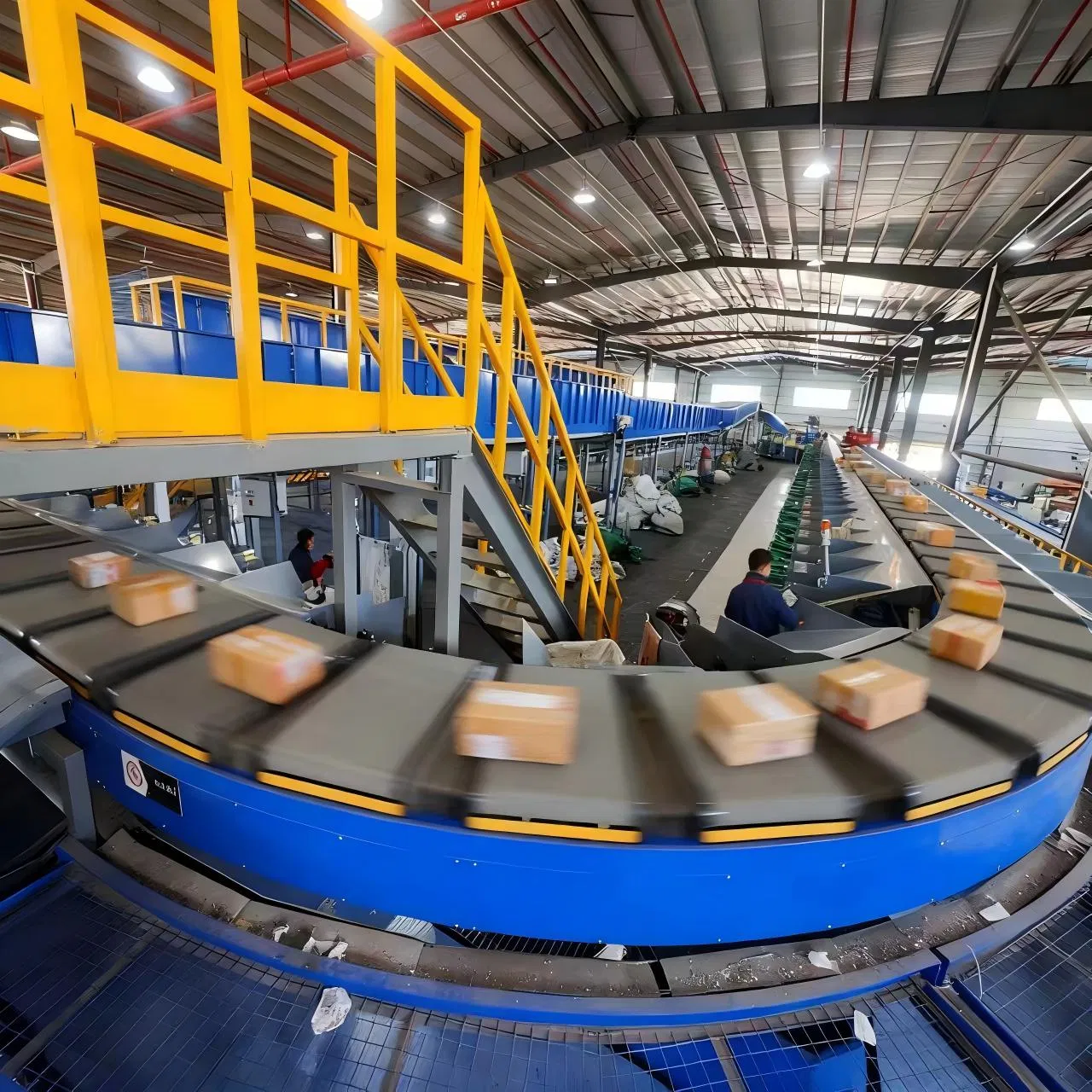

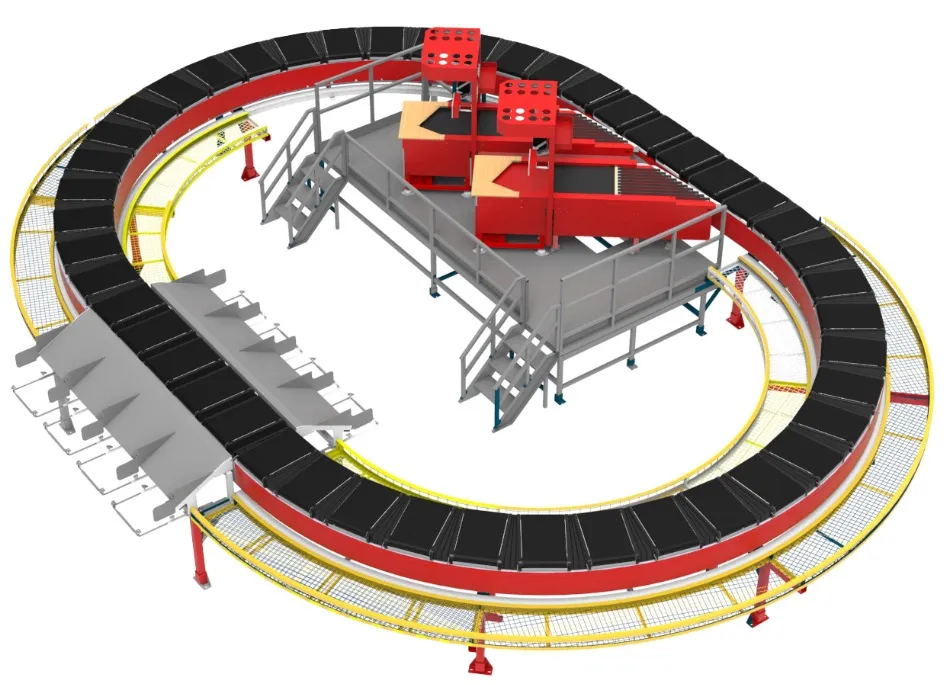

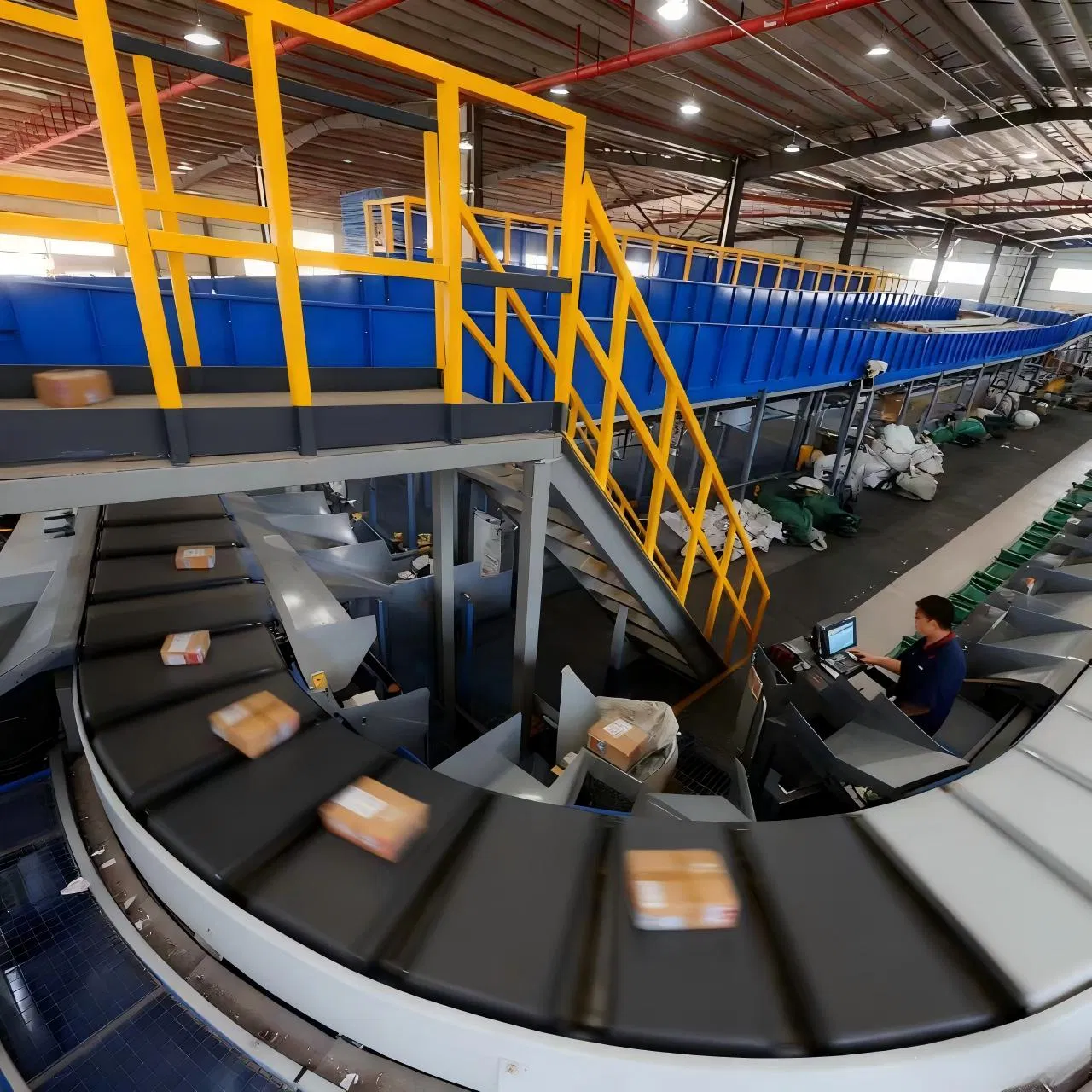

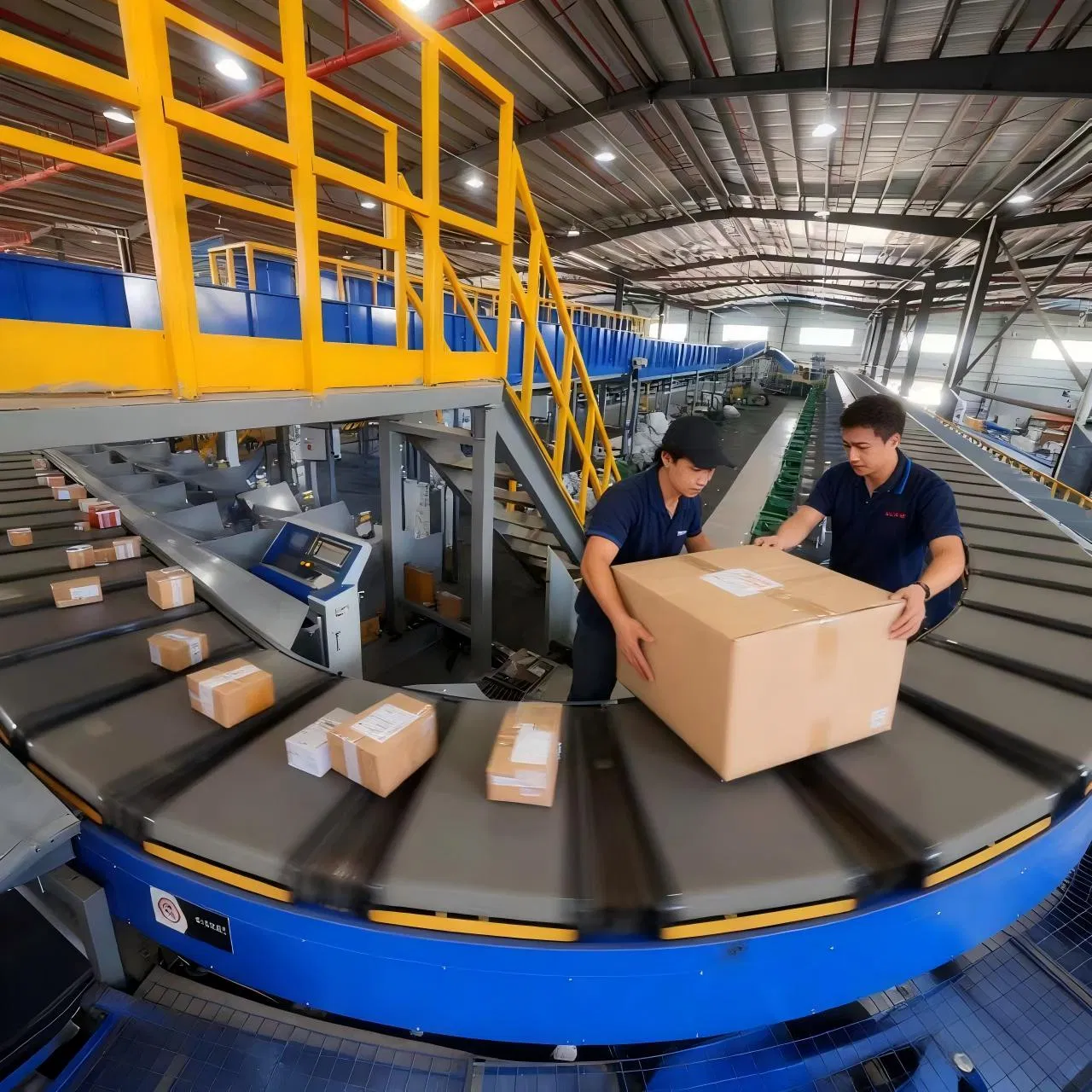

The Ring cross-belt sorter is the mainstream type of automated sorting equipment for express delivery. It consists of four integrated parts: the feeding system, sorting carts, unloading system, and control system. Under coordinated intelligent control, parcels are transferred from feeding to carts, and then accurately stored by physical location for efficient classification.
Applications: Logistics Hubs, E-Commerce Retail, Courier/Express, Railway Stations, Airports, and Agriculture (Fruits/Grains).
Construction: Reinforced steel tracks with adjustable tension, Intelligent monitoring panel with fault diagnostics, and high-duty sorting carts.
| Model Feature | Single Layer Single Trolley | Double Layer Single Trolley | Double Belt Single Trolley |
|---|---|---|---|
| Sorting Efficiency (Pcs/hr) | 15,000 - 30,000 | 30,000 - 60,000 | 30,000 - 60,000 |
| Operating Speed (m/s) | 2.0 - 2.4 | 2.0 - 2.4 | 2.0 - 2.4 |
| Standard Pitch (mm) | 600 | 600 | 600 |
| Barcode Recognition Rate | 99.9% | 99.9% | 99.9% |
| Max Parcel Dimension (mm) | 420*650*400 | 420*650*400 | 1000*800*600 |
| Loading Weight (kg) | 0.05 - 5 | 0.05 - 5 | 0.05 - 30 |
As a professional manufacturer with over 20 years of expertise, we offer reliable machinery certified by ISO 9001 and CE. Our products are exported to 50+ countries, supported by strict quality control and innovation.
