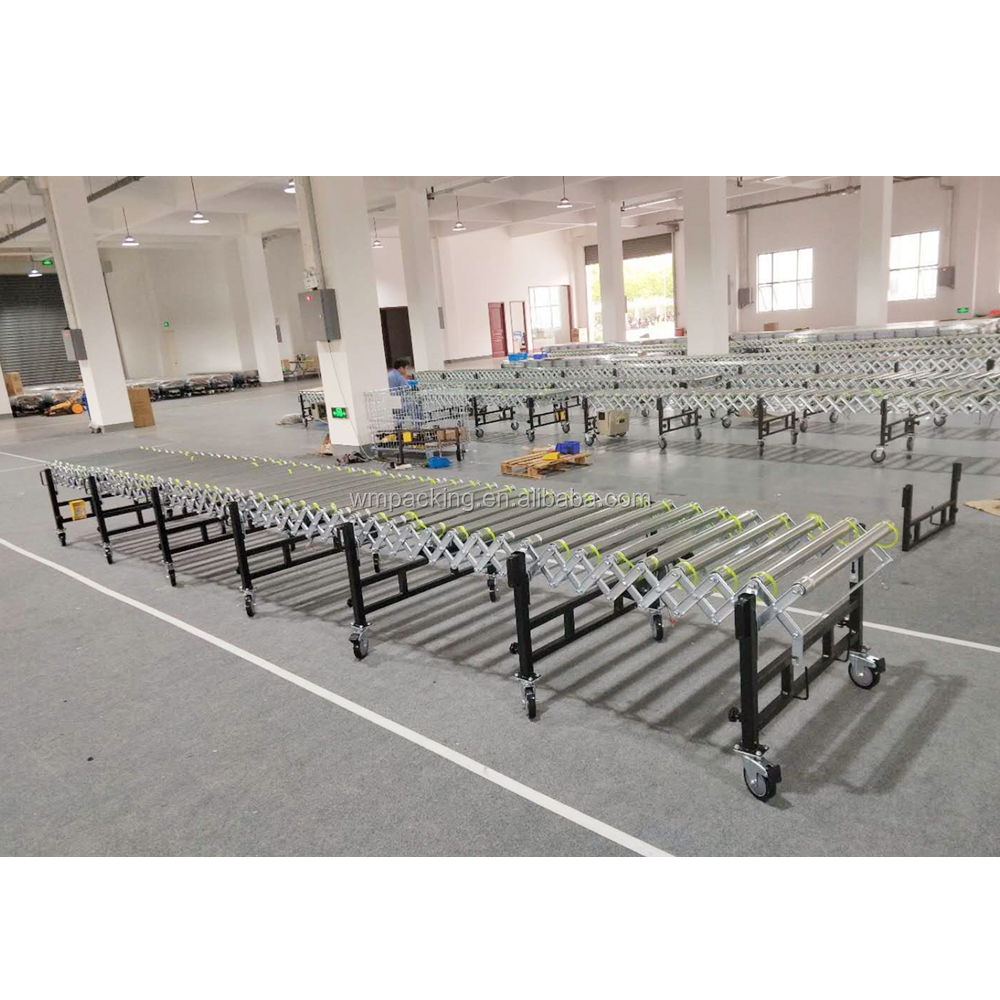

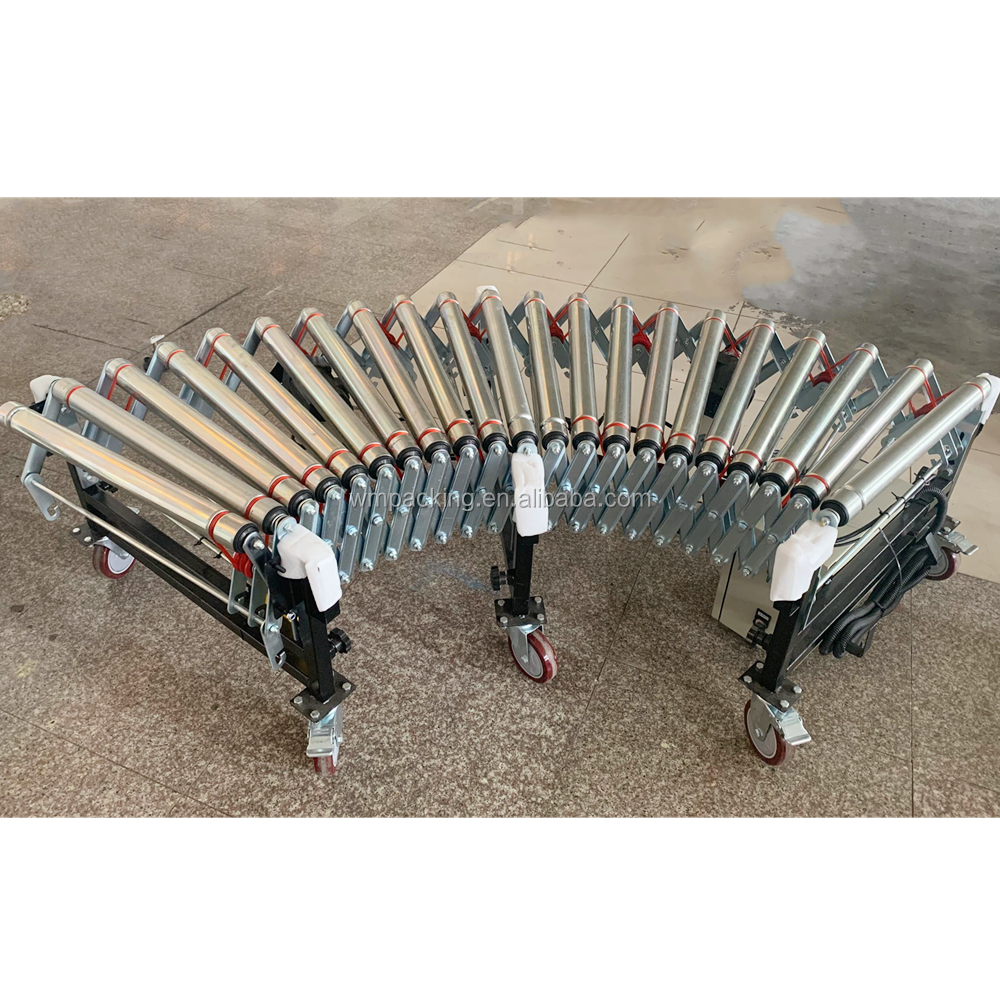

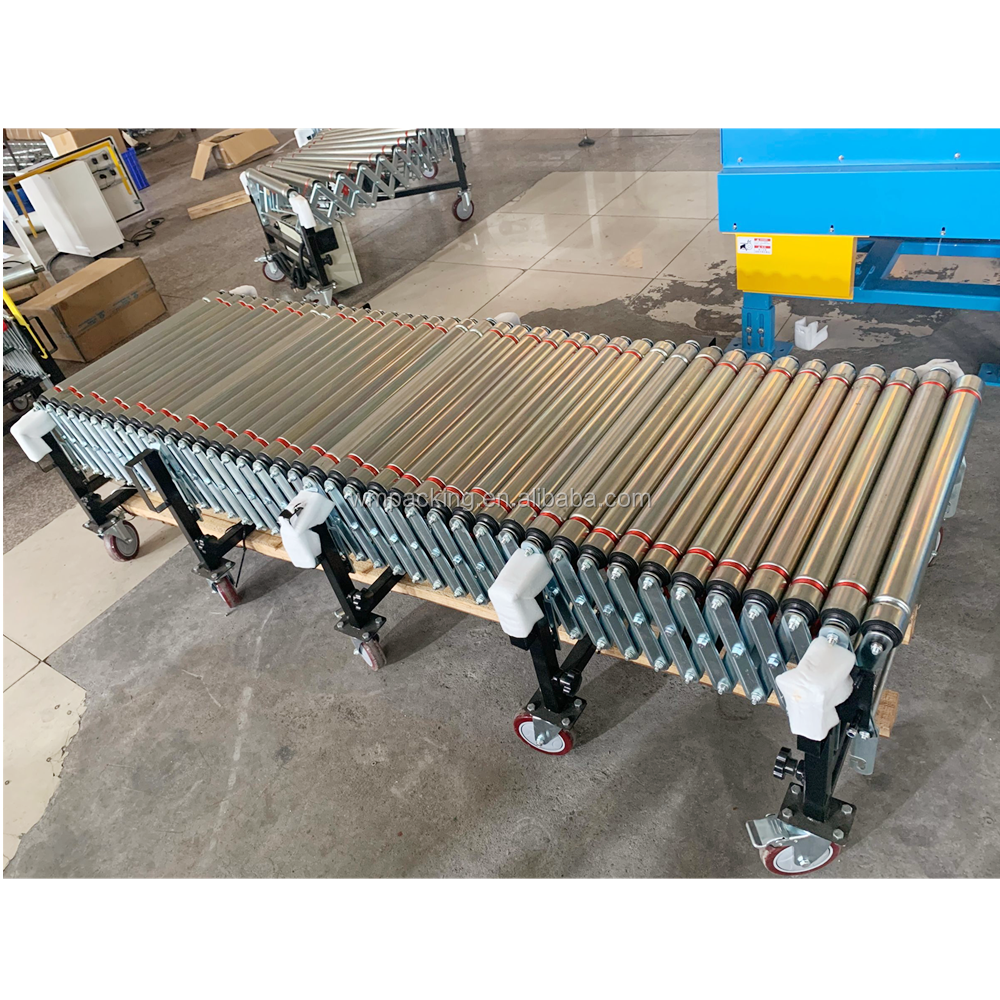

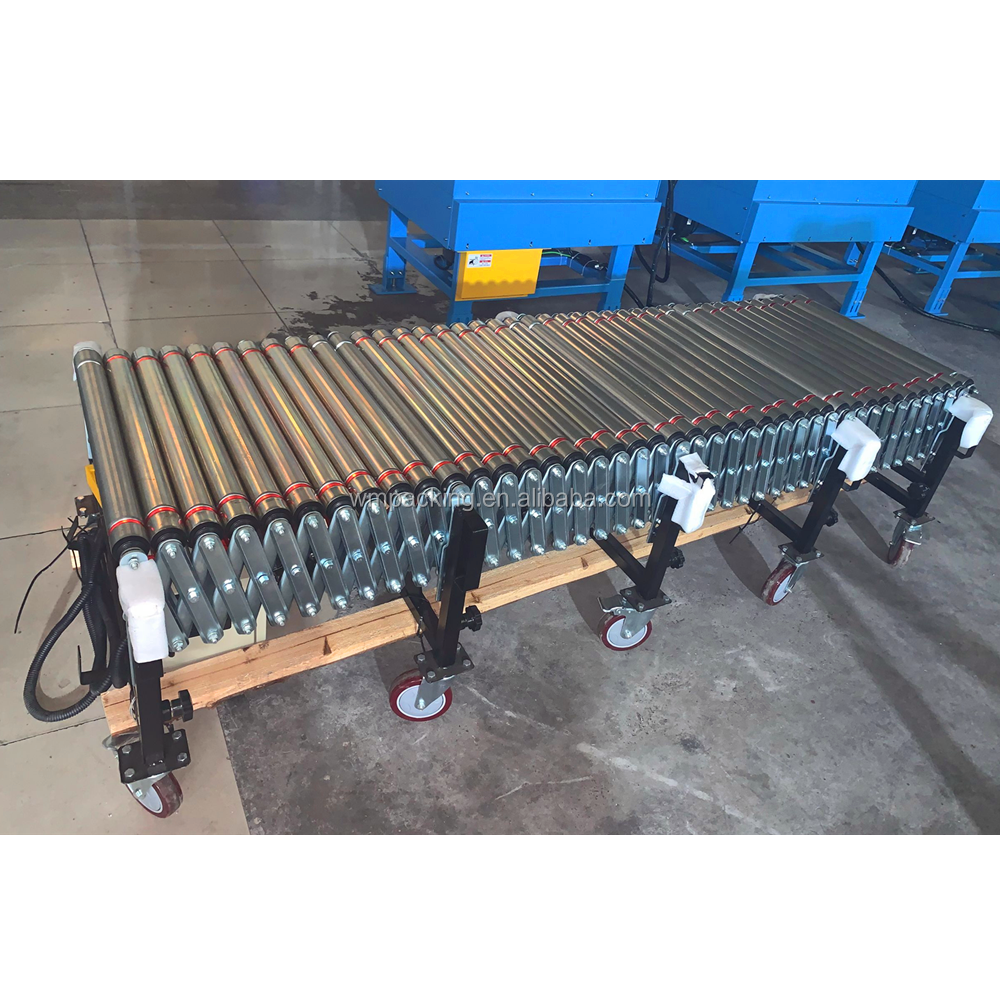

Having extendable, flexible frames, these belt-drive powered roller conveyors are commonly used for loading and unloading trailers, creating temporary extra assembly lines. The accordion-style frames can stretch, curve, and contract to change the length or shape of the conveyors, and the conveyors collapse for compact storage. Self-tracking Rollers are driven by motorized belts, which ensures conveyed items following the conveying curves. Adjustable legs on both sides provide support. The legs have swivel casters that allow the conveyors to be rolled into the right position. Powered roller conveyors minimize the effort it takes to move loads with rimmed or uneven bottoms from one place to another. The conveyor's roller spacing density affects the size of the items that can be conveyed on it. The smallest item on the conveyor should be supported by at least three rollers at all times.
| Roller Driven Main Power: |
Famous Brand Gear Reducer (220V/1PH/90W) |
| O-Belt: |
Unique designed, TPU Material, OD 6mm |
| Frequency Converter: |
Delta from Taiwan of China |
| Open Length: |
5m, 6m, 7m, 8m, 9m, 10m |
| Roller Width: |
600mm, 700mm, 800mm |
| Conveying Height: |
600mm~800mm |
| Conveying Speed: |
10~18m/min |
| Max Loading Weight: |
50kg/m² |
| Roller: |
Galvanized Roller, OD 50mm |
| Structure: |
Powder Coated or Galvanized Welded Hollow Section |
| Movable Wheel: |
4'' Nylon Wheel |
| Extendable Length: |
5m~12m |
| Surface Finishing: |
Powder Coated for all Steel Parts Except the Standard Accessories |
🎯
Our Strategy: Focus on customers’ actual demands and formulating flexible solutions to meet their current and future requirements, improve efficiency and save cost.
🌟
Our Mission: Customers First | Return to Society | Employees Satisfaction.
❓
Frequently Asked Questions
Q1: Are you a manufacturing or trading company?
A1: We are a manufacturer specializing in Automatic Sorting Systems, Material Handling Systems, Conveying sorting systems, Telescopic Belt Conveyors, and Automatic systems.
Q2: Do you manufacture hardware and R&D software?
A2: We manufacture most logistic equipment hardware and completely R&D our own software. We have experienced mechanical, electrical, and software engineers.
Q3: Do you make OEM products or customized projects?
A3: All of our projects are customized. We manufacture non-standard products based on specific customer requirements and ideas.
Q4: What's your delivery time?
A4: After confirming your deposit, the standard delivery time is 30 to 45 days.
Q5: What payment terms do you prefer?
A5: We accept T/T, L/C, and West Union.
Q6: How about the warranty?
A6: Roller conveyors, belt conveyors, and sorter machines are guaranteed for 1 year.
