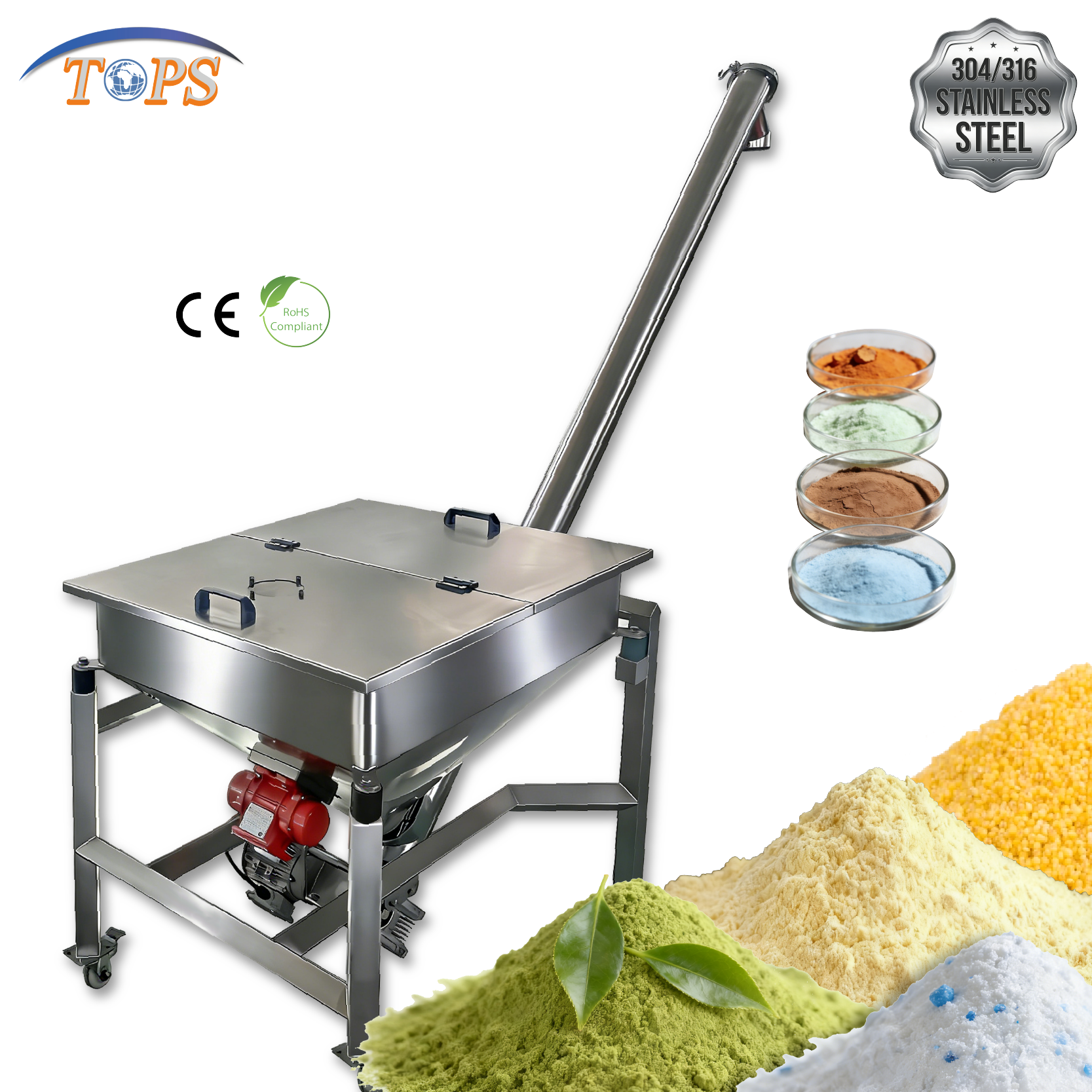

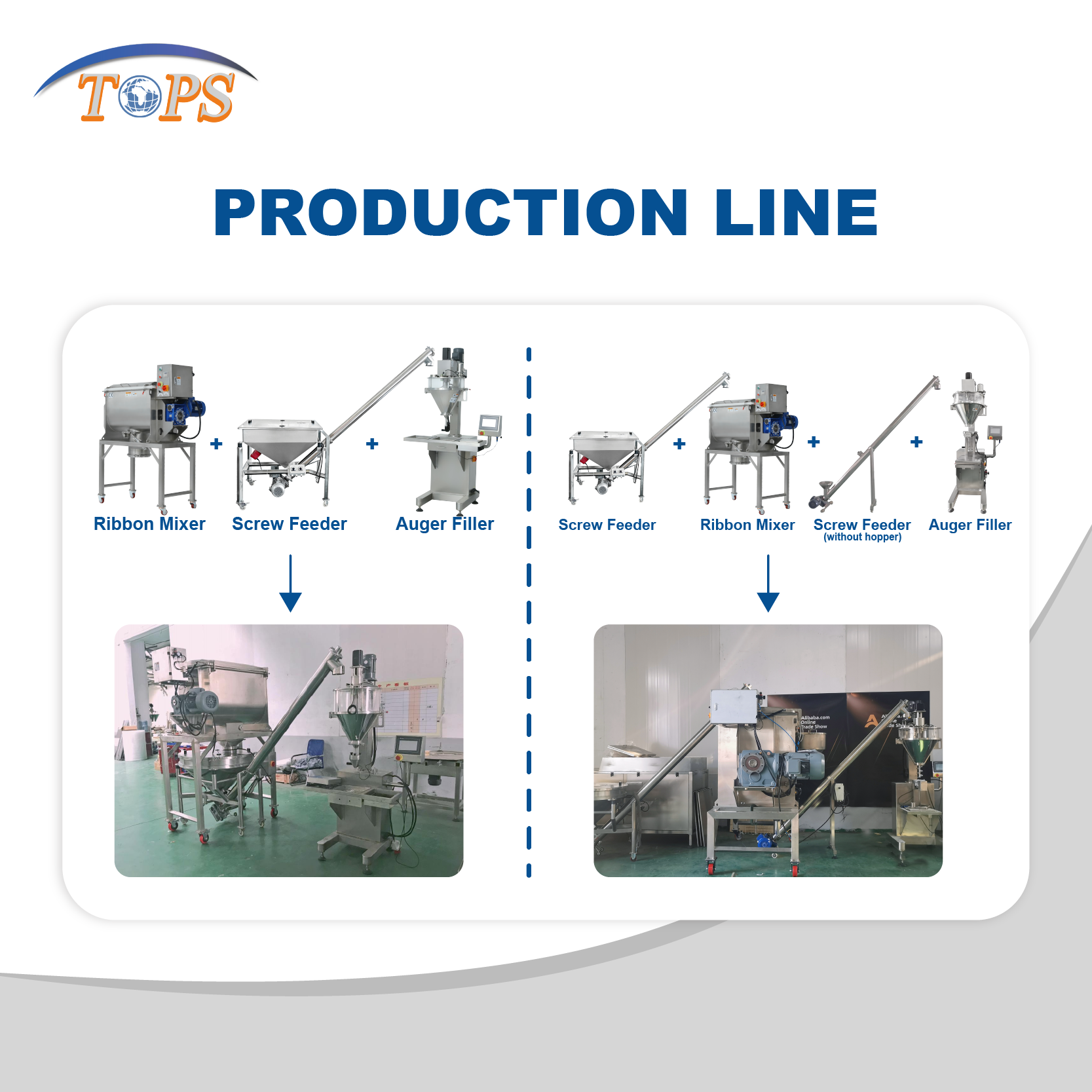

The screw feeder can convey powder and granule material from one machine to another. It's efficient and convenient. It can work in cooperation with the packing machines to form a production line. So it is widely used in packaging line, especially semi-auto and automatic packaging line.
It is mainly used in conveying powder materials, such as the milk powder, protein powder, rice powder, milk tea powder, solid beverage, coffee powder, sugar, glucose powder, food additives, feed, pharmaceutical raw materials, pesticide, dye, flavour, fragrances and so on.

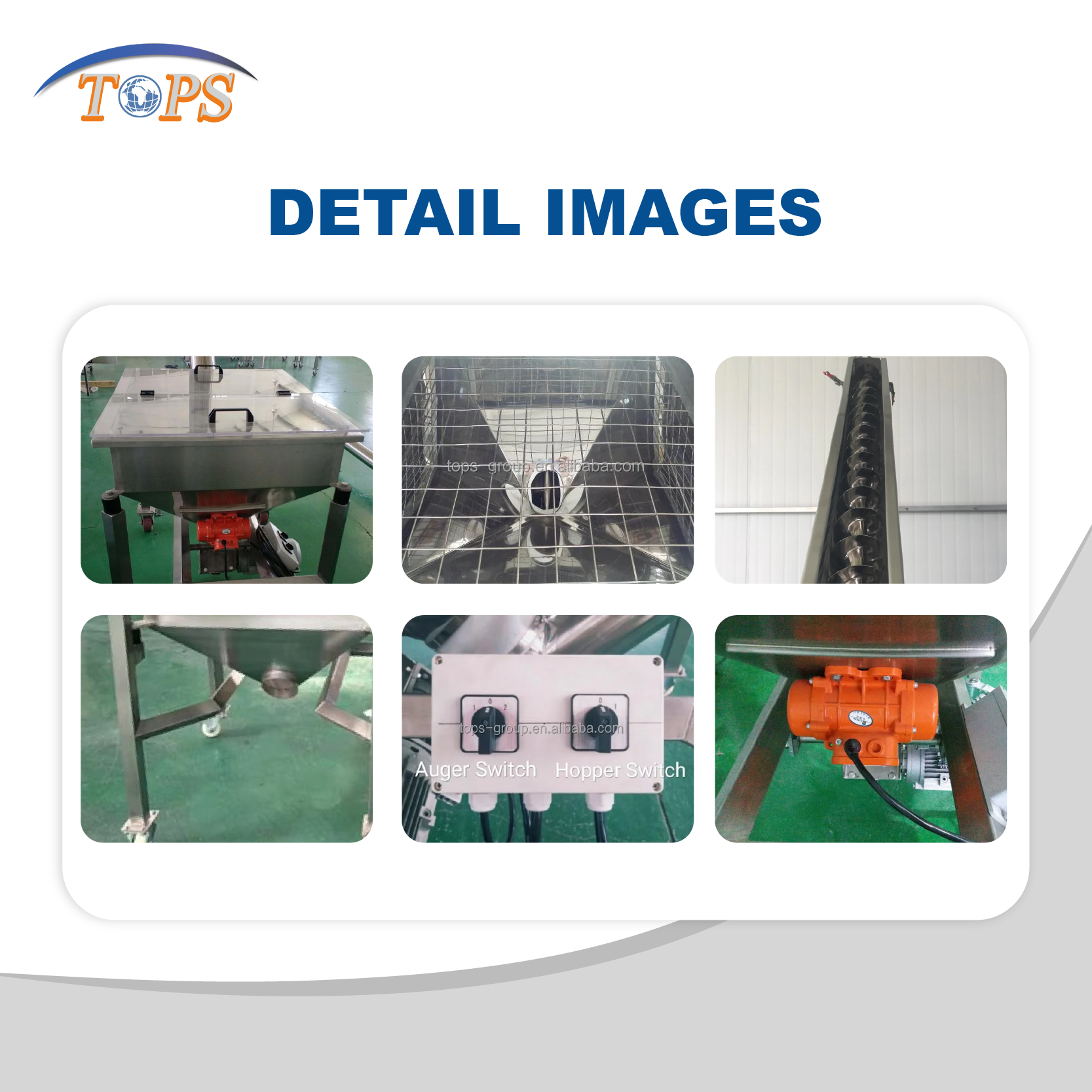

Full SS304 hopper, easy to maintain and clean.

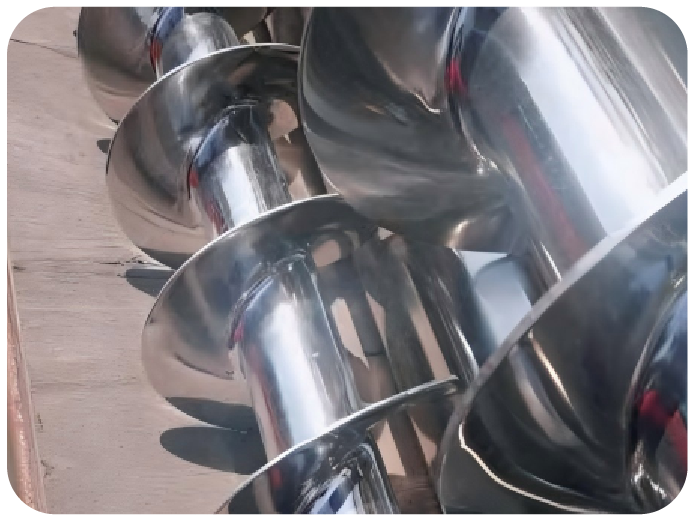

Conveying pipe is stainless steel 304, full weld and mirror polishing. No blind area.

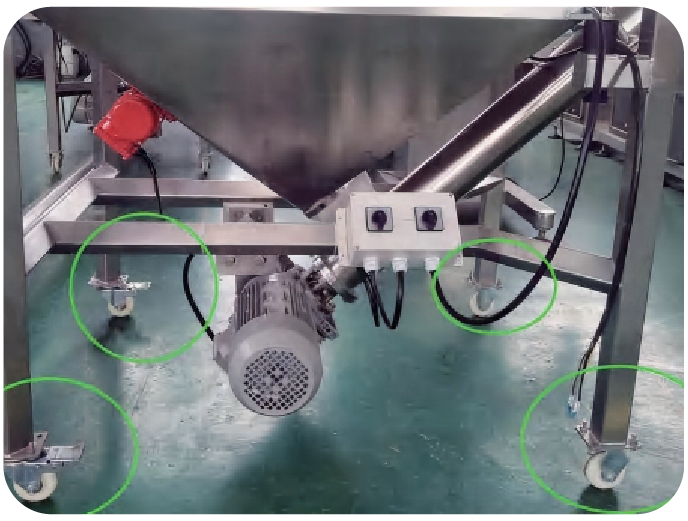

Movable holder with wheels to accommodate production needs.

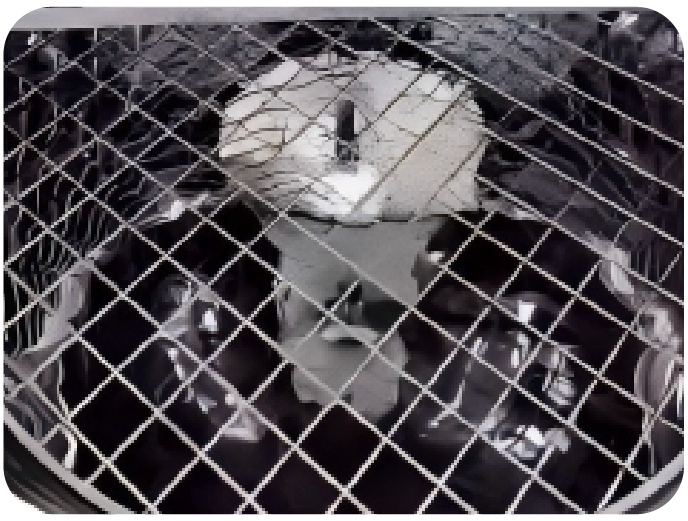

Protection cover and safety grid to prevent dust and ensure operator safety.

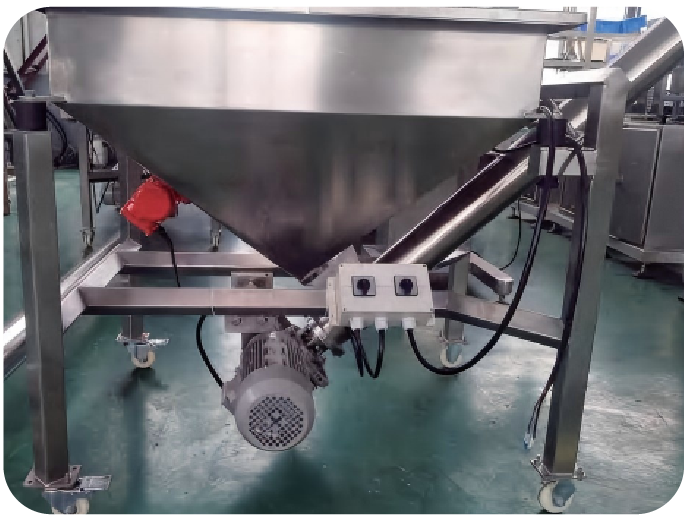

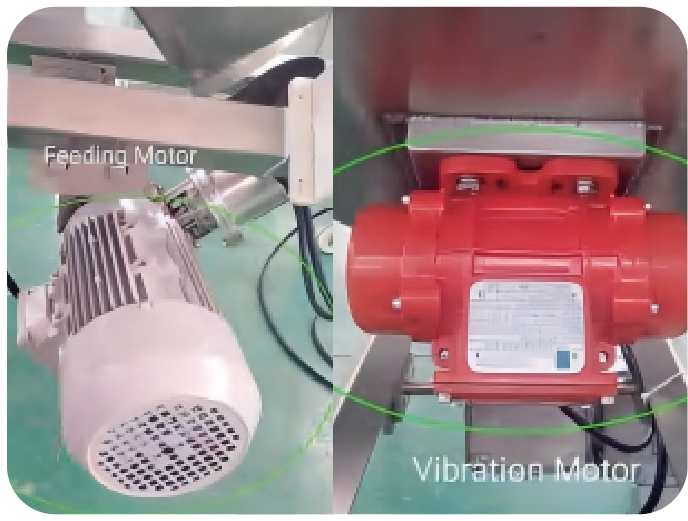

Two motors: one for screw feeding, one for hopper's vibrating.

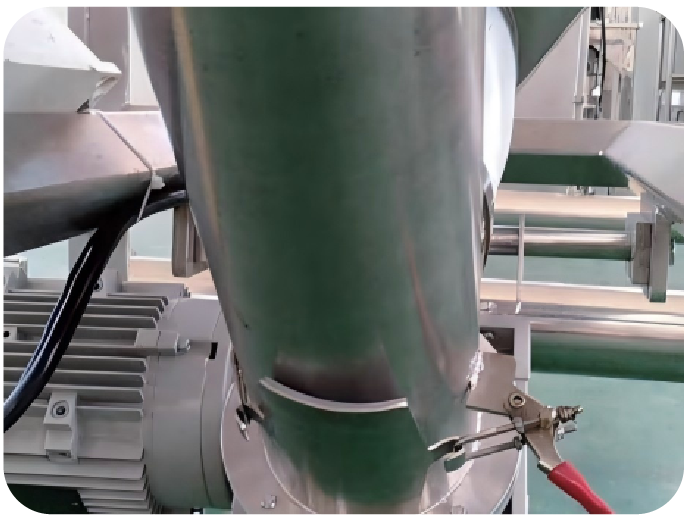

Residue discharge port at the bottom for easy cleaning without dismantling.
| Main Specification | HZ-2A2 | HZ-2A3 | HZ-2A5 | HZ-2A7 | HZ-2A8 | HZ-2A12 |
|---|---|---|---|---|---|---|
| Charging Capacity | 2m³/h | 3m³/h | 5m³/h | 7m³/h | 8m³/h | 12m³/h |
| Diameter of Pipe | Φ102 | Φ114 | Φ141 | Φ159 | Φ168 | Φ219 |
| Hopper Volume | 100L | 200L | 200L | 200L | 200L | 200L |
| Total Power | 610W | 810W | 1560W | 2260W | 3060W | 4060W |
| Total Weight | 100kg | 130Kg | 170Kg | 200Kg | 220Kg | 270Kg |
| Power Supply | 3P AC208-480V 50/60HZ | |||||
| Charging Height | Standard 1.85M (1-5M Customizable) | |||||
| No. | Name | Brand |
|---|---|---|
| 1 | Stainless steel | China |
| 2 | Button | CHINT |
| 3 | Emergency switch | CHINT |
| 4 | Switch | CHINT |
| 5 | Contactor | Schneider |
| 6 | Assist contactor | Schneider |
| 7 | Heat relay | Schneider |
| 8 | Motor & Reducer | Zik |

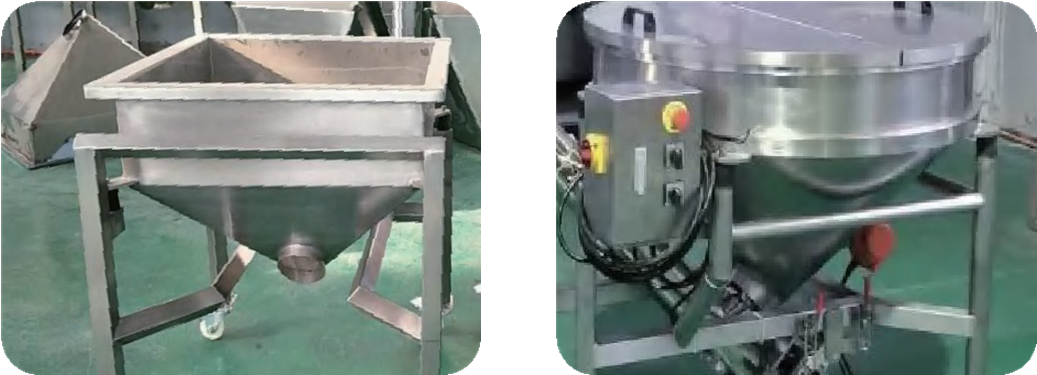

Square vs Round Hopper Options

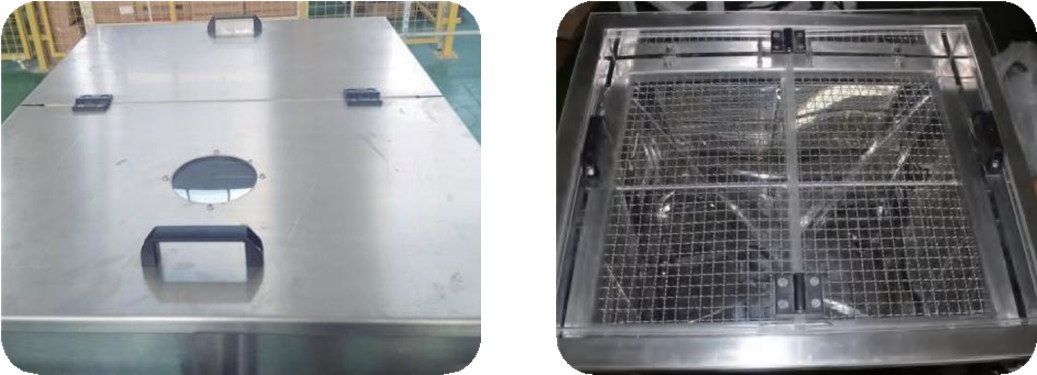

SS304 vs Plexiglass Cover

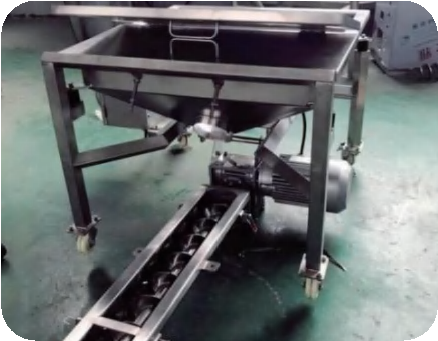

U-shape Tube Design

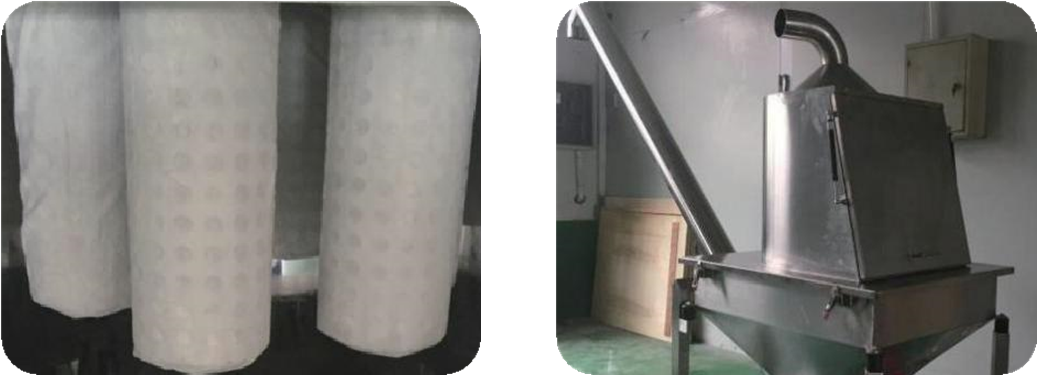

Dust Collector Integration

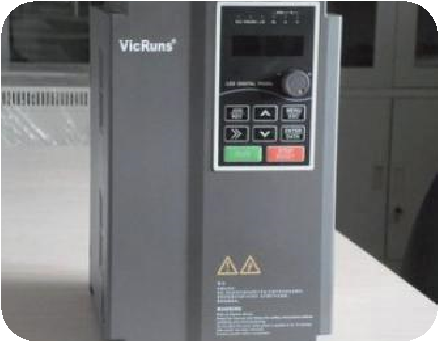

Inverter for Adjustable Auger Speed
Top Lid Stirrer for Low Fluidity Materials
