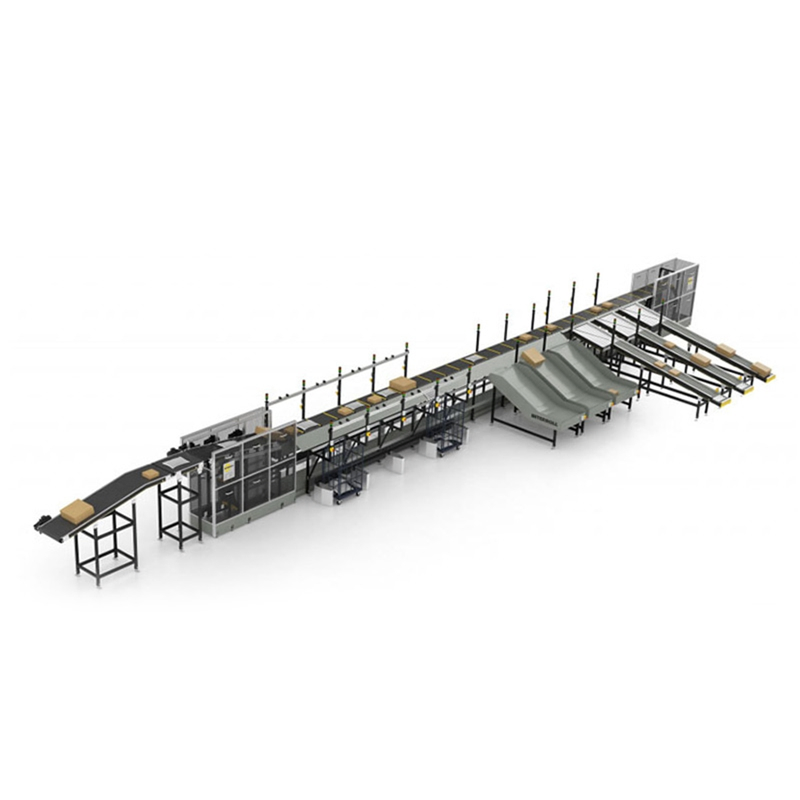

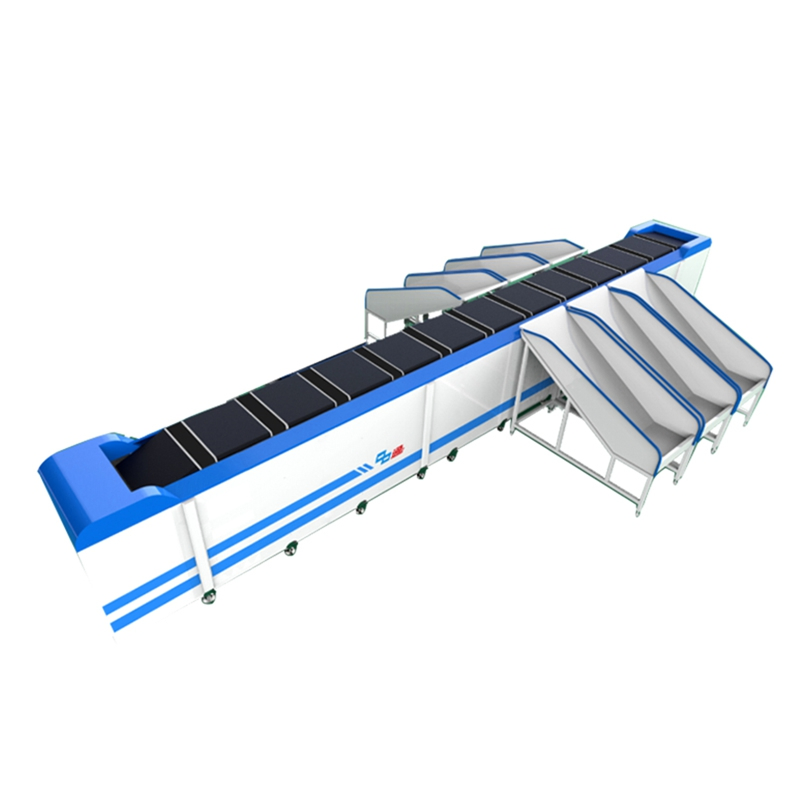

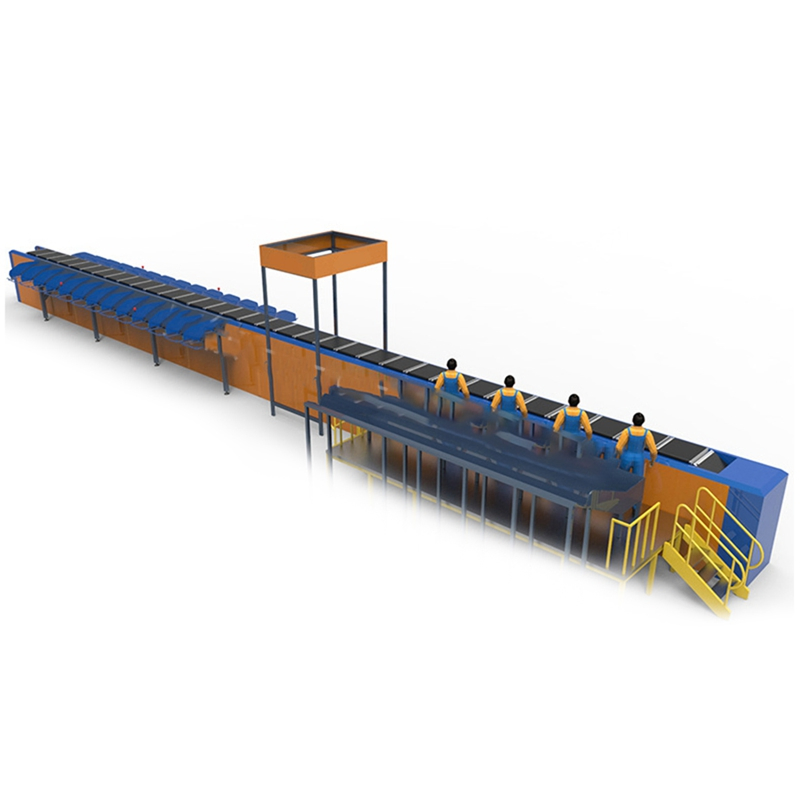

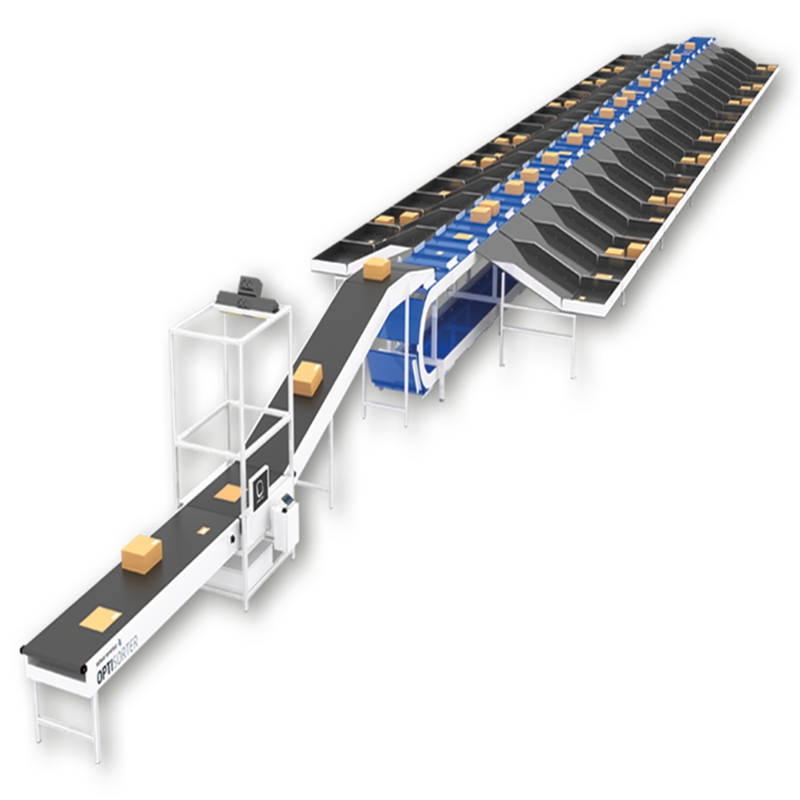

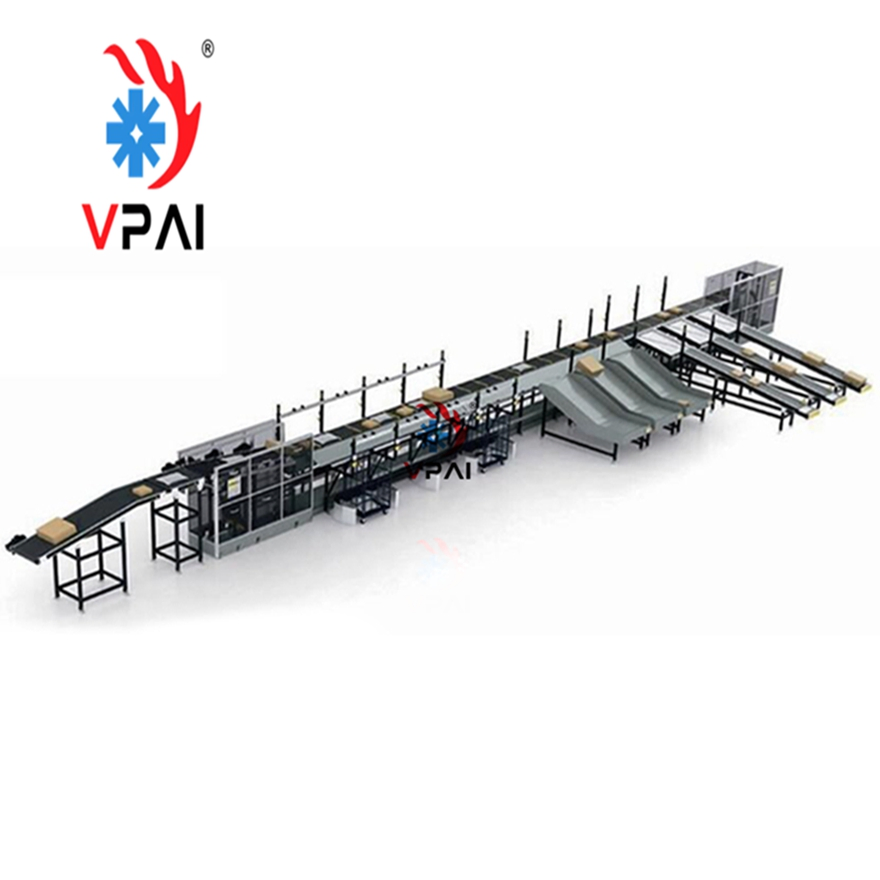

Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor
Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor
Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor
Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor
Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor
1 / 5
Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor
Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor
Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor
Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor
Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor

Custom-Designed Linear Cross Belt Sorter High-Speed Sorting Conveyor

Send Inquiry

Product Description

Linear Cross Belt Sorter
High-Speed Sorting Conveyor
★ Product Description

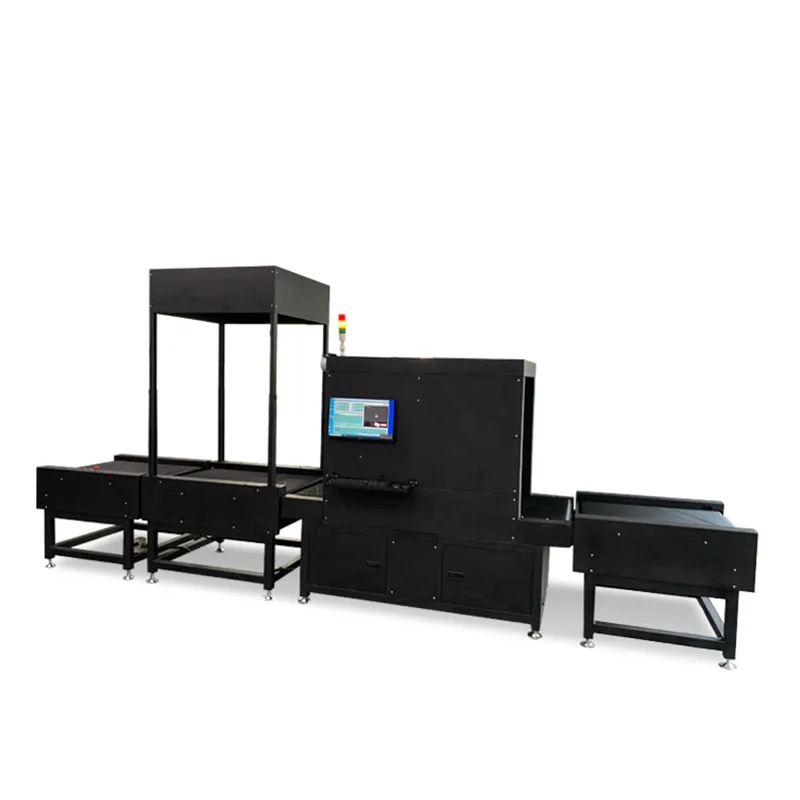

DWS System Details

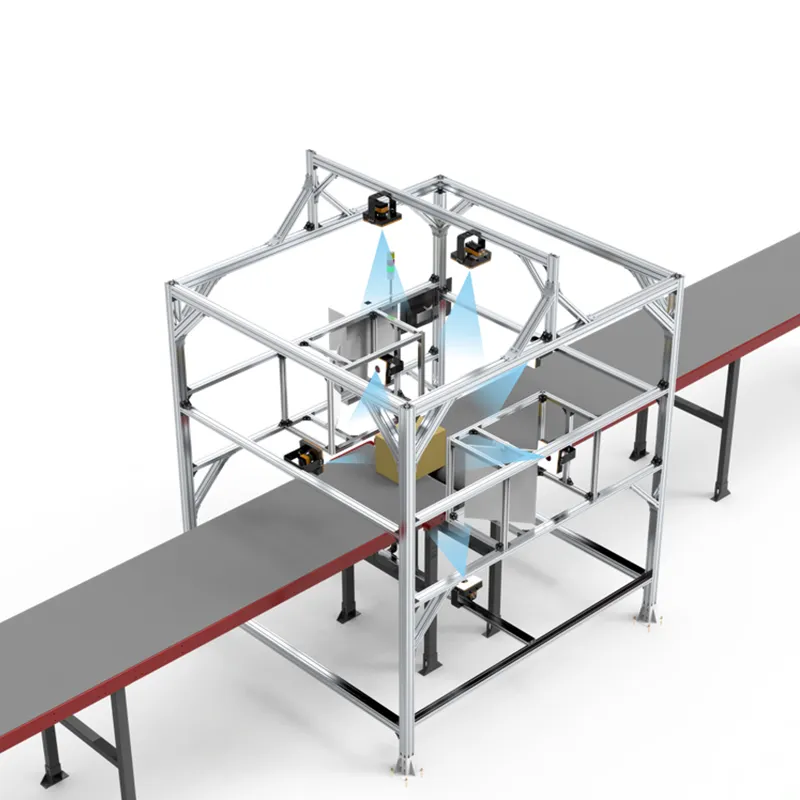

High Precision Scale

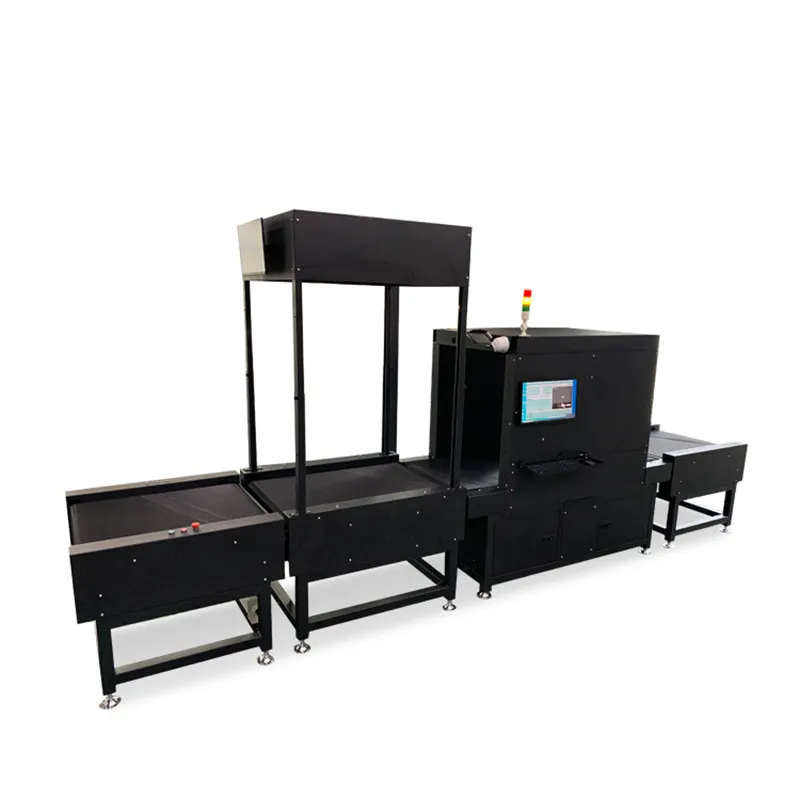

Sorting Technology
Type DWS (Dimension Weighing Scanning)
Hardware Components • Scanning camera (DH-MV-SL6200-16) + Optional handheld barcode scanner
• High Precision Dynamic Weight scale
• Dynamic High Precision volume measurement (1mm grating infrared technology)
• Industrial computers + Display + Code reading + Installation structure
• Electronic Control (Siemens PLC), Schneider components
• No power roller buffer section (1.5 m)
Software System • Image forensics software (Color Watermark + Picture Archive + Bar code picture)
• DWS supporting software
Efficiency 1200-2400 Items per hour
Technical Precision • Barcode recognition rate: >99.5%
• Weighing range: 0.1-50kg
• Weighing accuracy: ±20g
• Dimension Precision: ±1mm (average)
• Min Item Size: 100*10*10mm
• Max Item Size: 1000*800*800mm
Alarms Handles label damage, unread information, and intercepted items manually
Services Installation, Shakedown, 1-year warranty, 24-hour service support
⚙ Technical Overview
Technical Layout
Workflow Details
Module Specifications
Dimension Scanning
System Interface
System Integration
? FAQ
Q What is your delivery time?
A: Our regular products delivery time is 40 calendar days. Customized products delivery time depends on the specific requirements of the customer.
Q Can an extendable conveyor be used for both loading and unloading?
A: Yes. The belt can be operated for both loading and unloading processes.
Q Can you provide OEM services?
A: Yes, we provide OEM services and can print your logo on the equipment as requested.
Q How do I determine the right logistics equipment for my warehouse?
A: By providing your cargo type, volume, weight, size, and warehouse dimensions, our engineering team can design a professional integrated logistics solution for you.
Q What is the warranty period for your equipment?
A: Our equipment typically includes a one-year warranty, supplemented by free lifetime online technical support.
Q What are your standard payment terms?
A: Payment terms are T/T, though other reasonable payment methods can be discussed and accepted.
