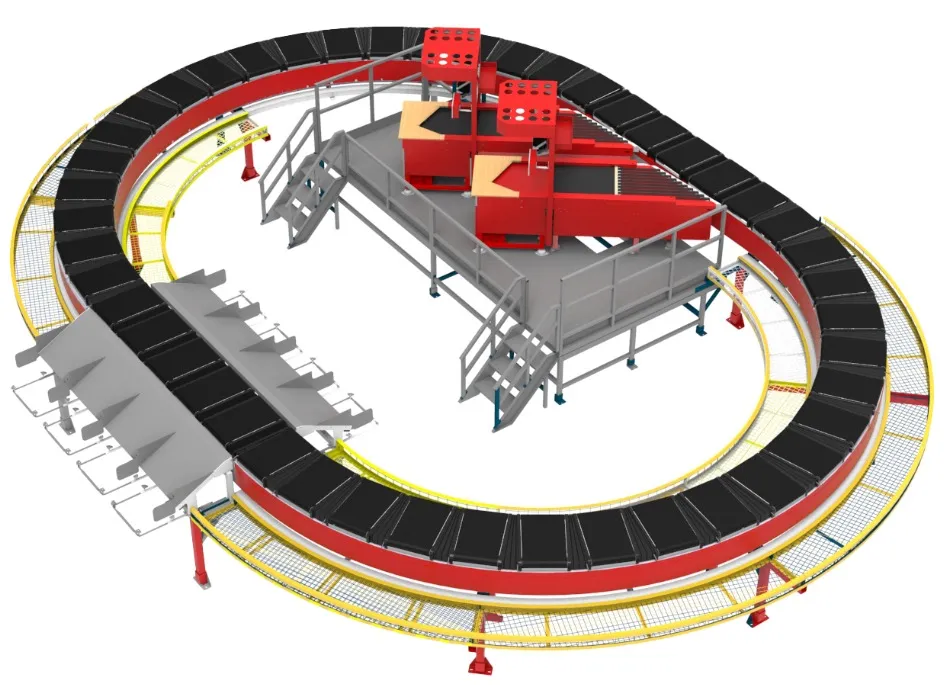

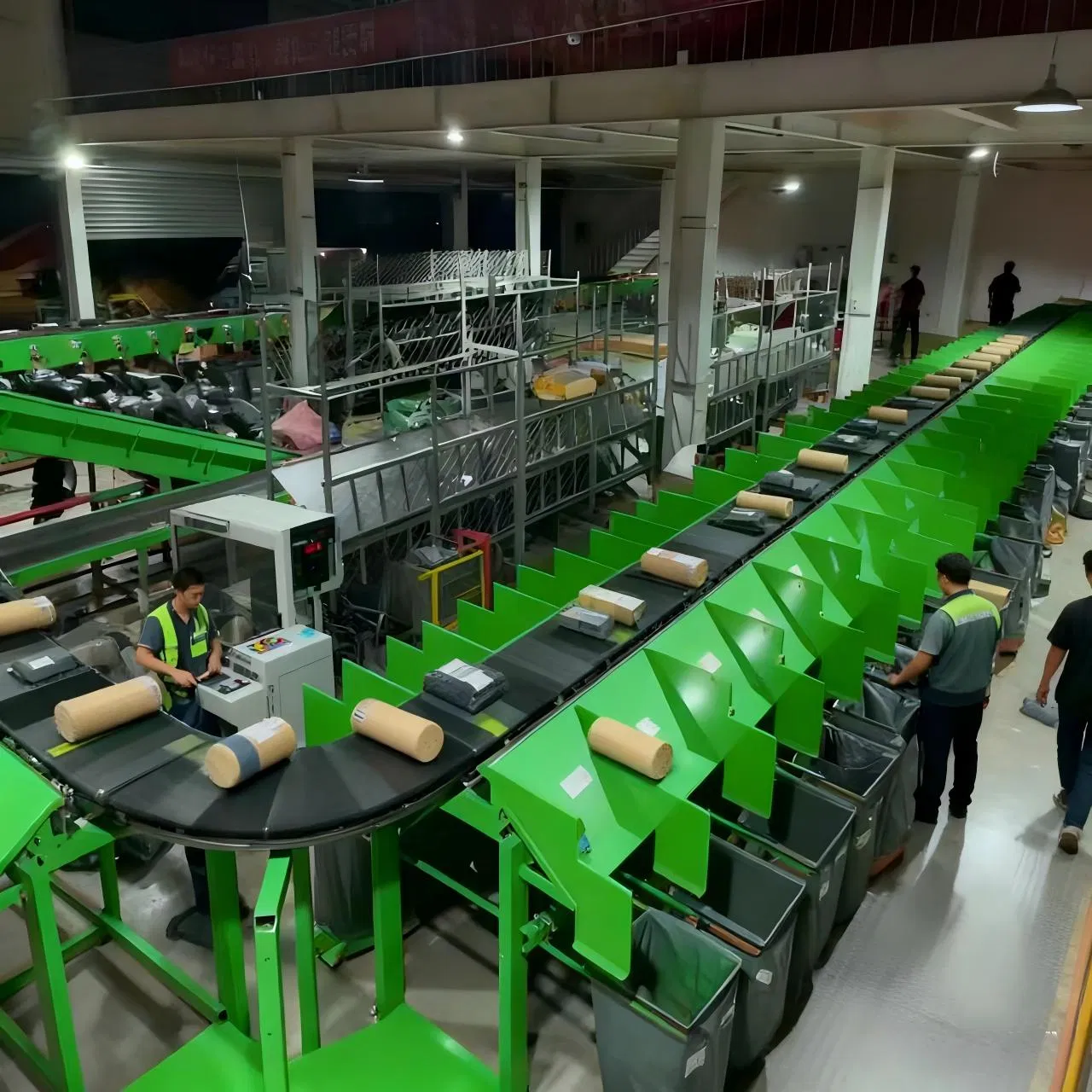

The Ring cross-belt sorter is the primary automated sorting equipment for modern express delivery. It consists of four integrated systems: feeding, sorting carts, unloading, and intelligent control. Parcels are seamlessly transferred from feeding to carts, where the system executes classified storage by physical location, achieving high-speed sorting functionality.
| Model Details | Single Layer Single Trolley | Double Layer Single Trolley | Double Belt Single Trolley |
|---|---|---|---|
| Sorting Efficiency (Pcs/hr) | 15,000 - 30,000 | 30,000 - 60,000 | 30,000 - 60,000 |
| Operating Speed (m/s) | 2 - 2.4 | 2 - 2.4 | 2 - 2.4 |
| Barcode Recognition Rate | 99.9% | 99.9% | 99.9% |
| Max Parcel Dimension (mm) | ≤420*650*400 | ≤420*650*400 | ≤1000*800*600 |
| Loading Weight (kg) | 0.05 - 5 | 0.05 - 5 | 0.05 - 30 |
Applications:
System Components:
Global Support: 24/7 technical assistance and consistent spare parts supply to ensure zero downtime.
Professional Training: On-site or remote comprehensive operation and maintenance training sessions.
Turnkey Solutions: From initial design to final installation and customs clearance support.
Customization: OEM/ODM capabilities to meet specific regional project requirements.
