Product Description

High-performance Ring Cross Belt Conveyor Sorter
The Ring cross-belt sorter is currently the most mainstream type of automated sorting equipment for express delivery. It mainly consists of four parts: the feeding system, sorting carts, unloading system, and control system. Under the coordinated control of the control system, parcels are transferred from the feeding system to the sorting carts for sorting, and the unloading system completes the classified storage of parcels by physical location, thereby achieving the parcel sorting function.
Specifications & Applications
📦
Logistics & Goods
Efficient Handing Sorting for High Duty Package
🚚
Courier & Express
Automated Efficient Parcel Sorting
✈️
Airports & Stations
Reliable Luggage Transfer Systems
🍎
Agriculture
Sorting for Fruits, Beans, and Grains

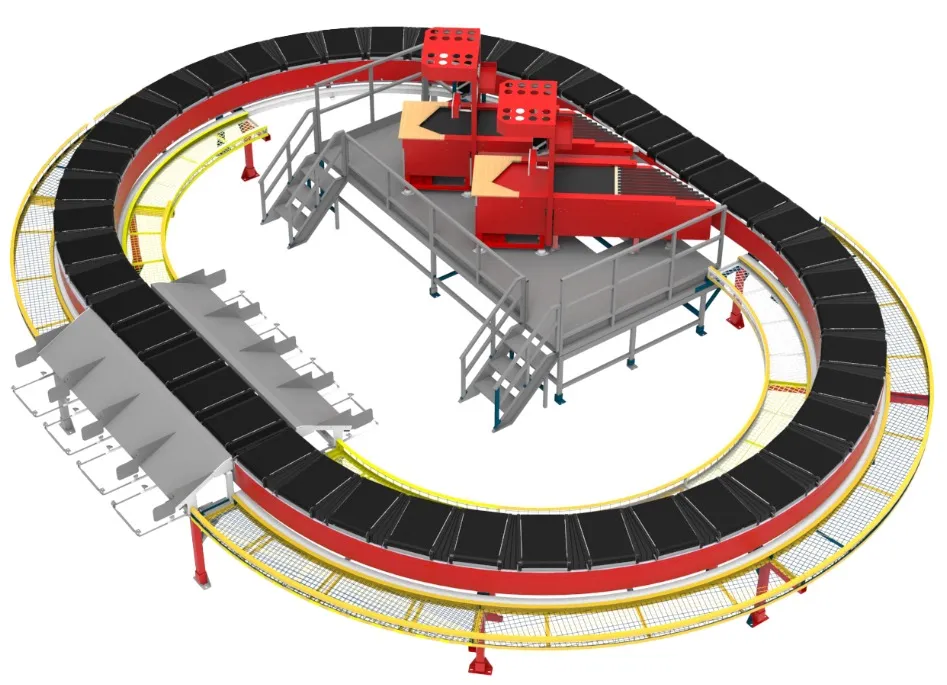

Ring Cross Belt Conveyor Sorter
Key Configurations
  • 🛠️ Construction: Consist of Feeding System, Sorting Cart, Main Control System, Unload System.
  • ⚙️ Undercarriage: Reinforced steel tracks with adjustable tension.
  • 🖥️ Control System: Intelligent monitoring panel with fault diagnostics.
Technical Specifications
Custom configurations available upon request.
Model Single Layer Single Trolley Double Layer Single Trolley Double Belt Single Trolley
Sorting Efficiency (Pcs/hr) 15000-30000 30000-60000 30000-60000
Operating Speed (m/s) 2-2.4 2-2.4 2-2.4
Standard Pitch (mm) 600 600 600
Barcode Recognition Rate 99.9% 99.9% 99.9%
Parcel Dimension (mm) ≤420*650*400 ≤420*650*400 ≤1000*800*600
Loading Weight (kg) 0.05-5 0.05-5 0.05-30
Floor Area (m²) 800-1500 1000-2000 1000-2000
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.

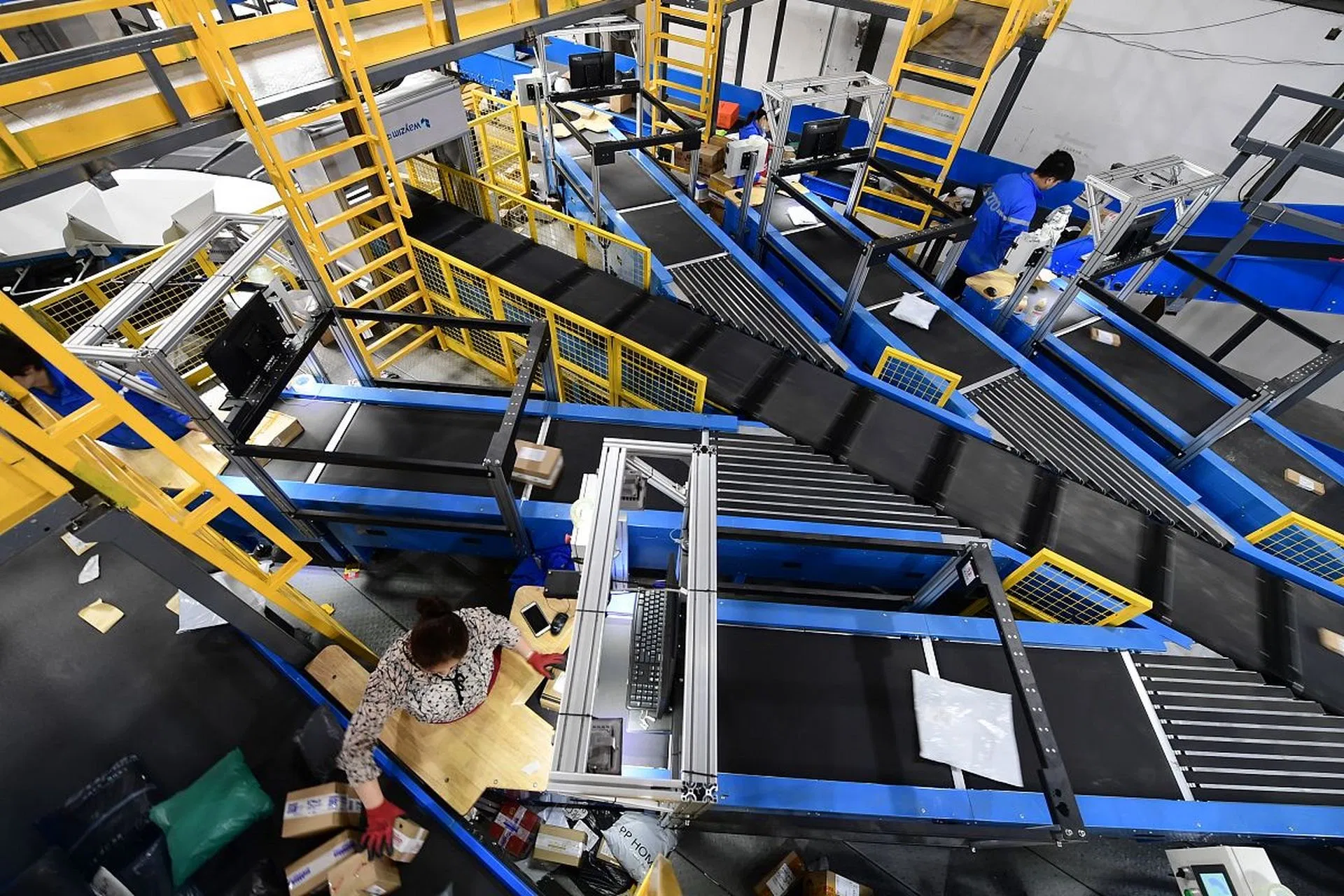

Conveyor Dimensions
Service & Capabilities
🌍
Global Support: 24/7 technical assistance and spare parts supply.
🎓
Training: On-site or remote operation and maintenance training.
⚡
Efficiency: Turnkey project solutions and custom attachments.

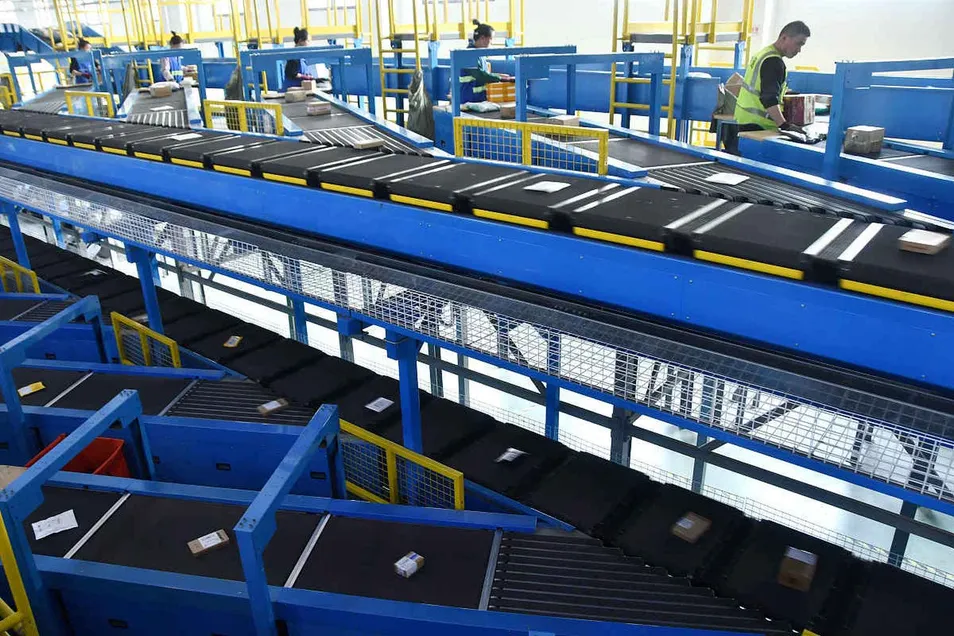

Production Facility
Other Specialized Products
• Wheel Sorter
• Vertical Conveyor
• Multi Conveyor Systems
• Sorting Machines for Logistics and Agriculture
Frequently Asked Questions
What’s the lead time for orders?
Standard models typically ship in 15–30 days, while customized units or large-scale systems require 30–45 days depending on the project complexity.
Do you provide after-sales service overseas?
Yes, we provide 24/7 technical assistance and have partnered service centers in key regions to ensure minimal downtime for your operations.
Can the sorter be customized for specific parcel sizes?
Absolutely! We offer tailored carrier sizes and belt configurations to handle a wide range of parcel dimensions, from small envelopes to large 30kg packages.
What documents are provided for international export?
We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and necessary certifications like CE or COC.
How is the equipment maintained?
Our systems feature intelligent diagnostics. We provide detailed manuals and remote or on-site training for your maintenance team to ensure long-term reliability.
Can this system integrate with existing WMS software?
Yes, our control systems are designed with standard interfaces that allow for seamless integration with most modern Warehouse Management Systems (WMS) and ERPs.
