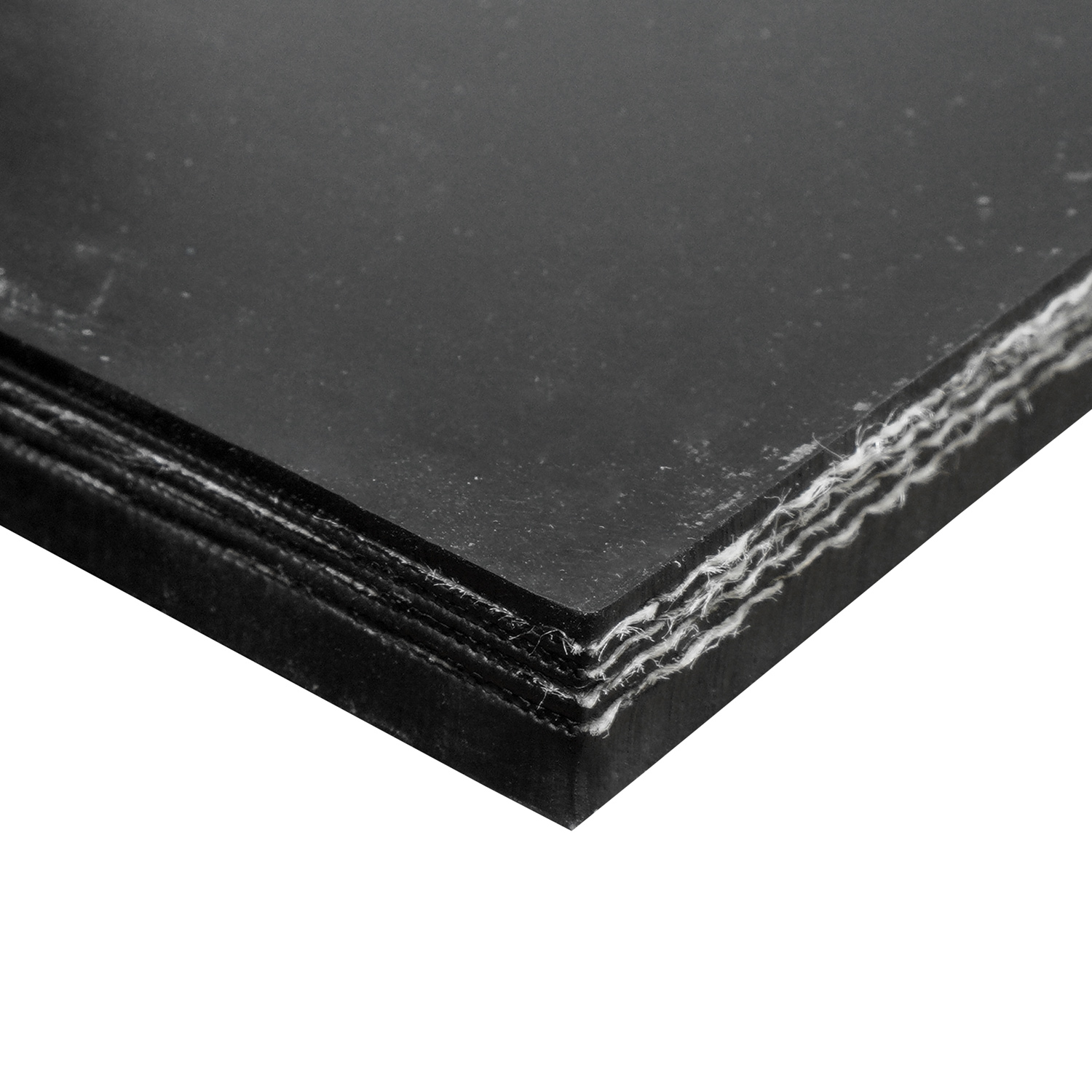

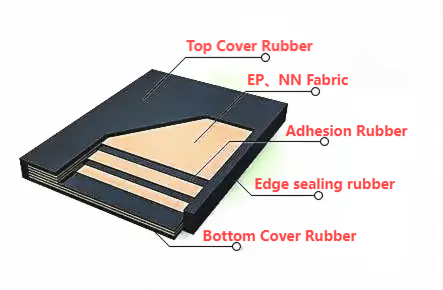

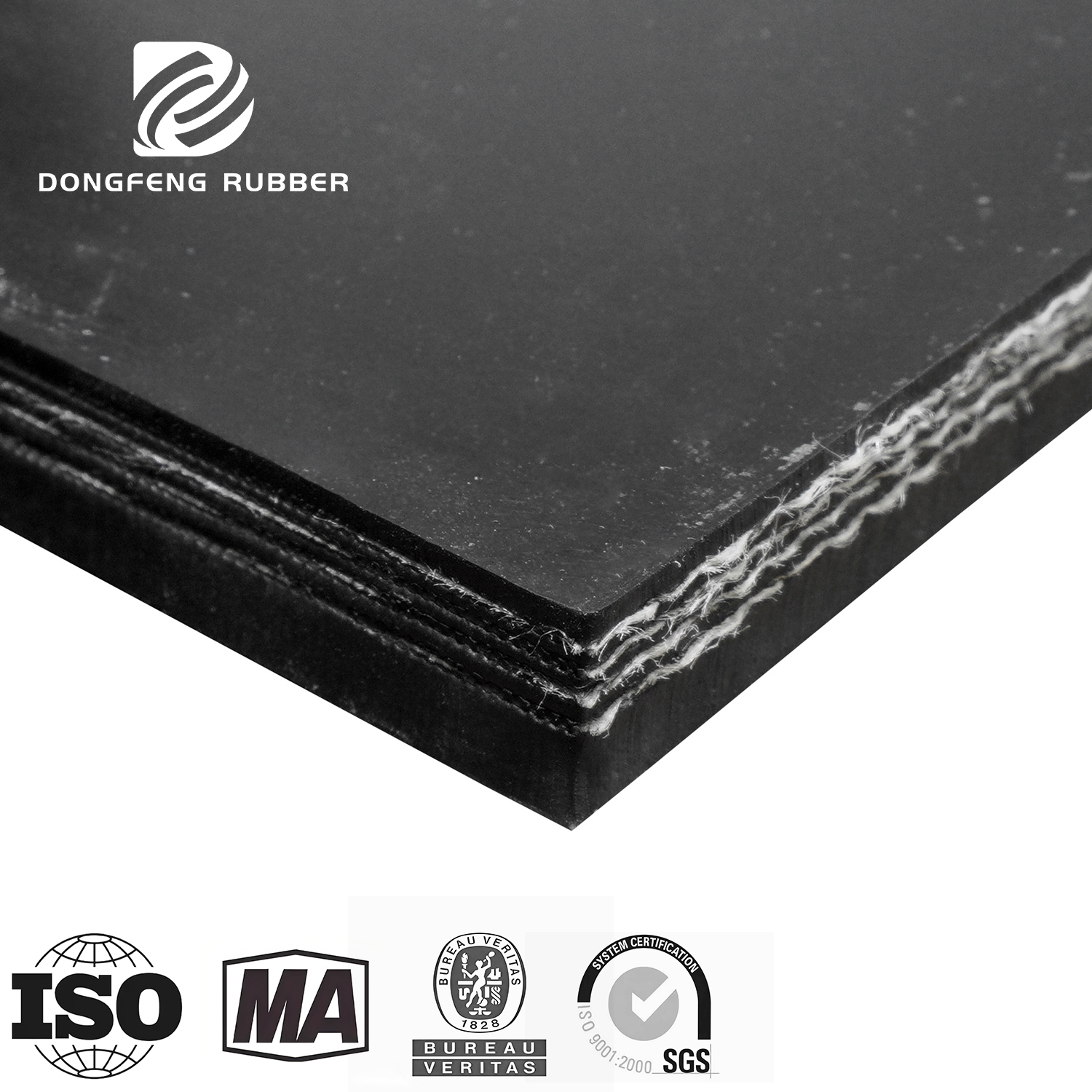

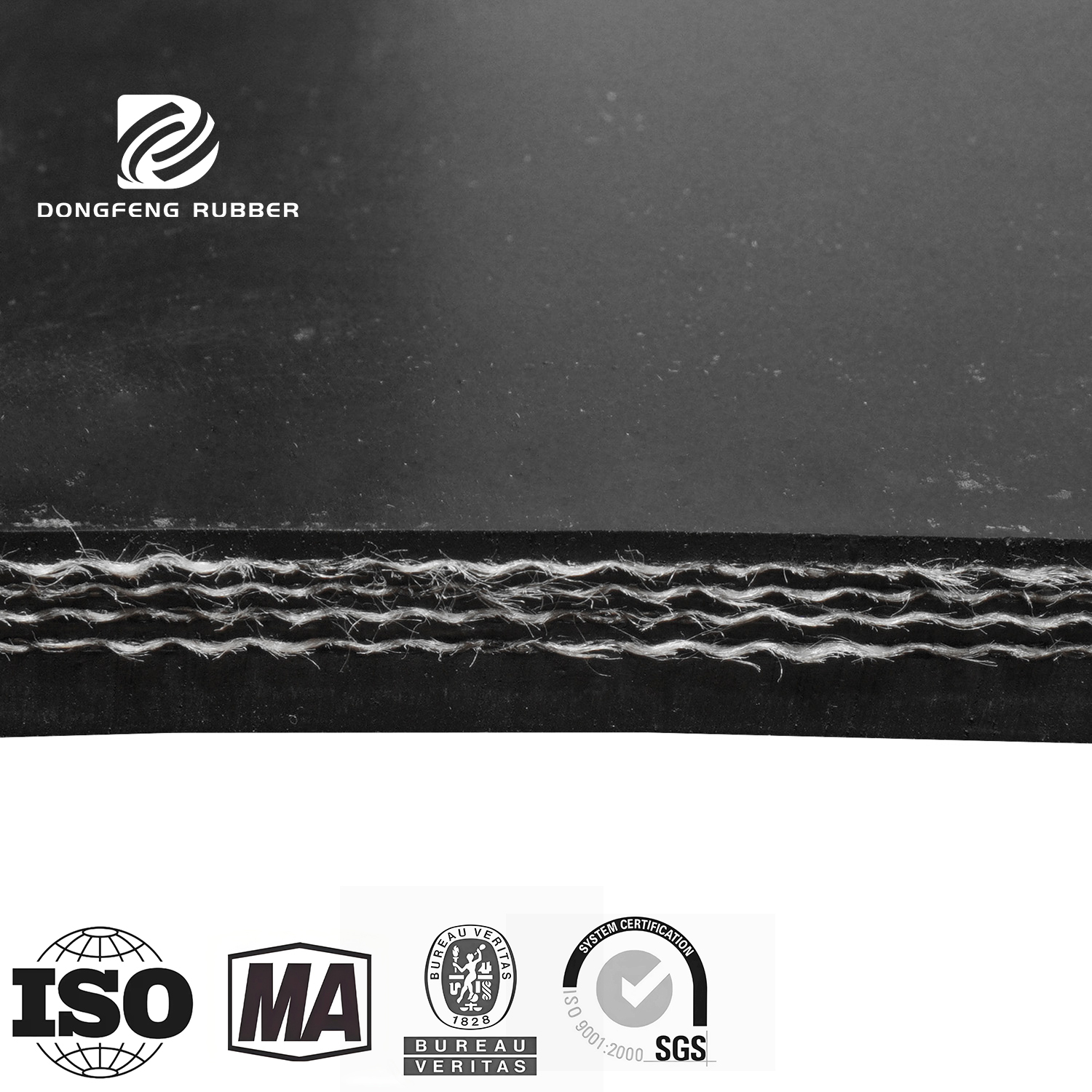

Polyester core conveyor belt is designed according to the highest industry standards, consisting of multiple layers of polyester canvas bonded together, covered from top to bottom with high-strength and wear-resistant flexible rubber. Suitable for transporting all types of materials across various heavy industries.
GB/T7984, MT/T914, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173, etc.

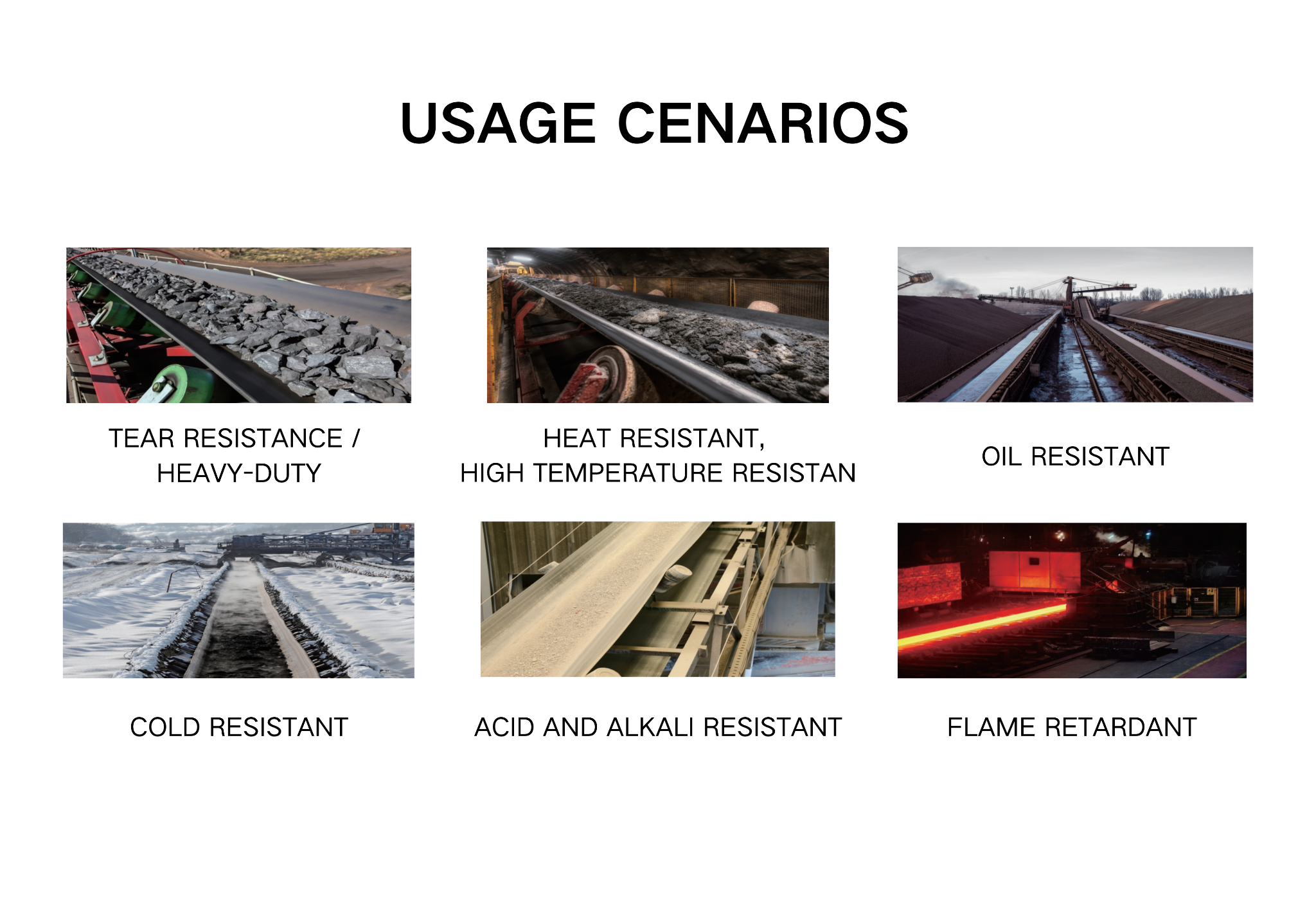

Ideal for long-distance, large capacity, and high-speed material transportation. Extensively used in:
| Fabric Specs | Ply Thickness (mm/p) | Strength Series (N/mm) | Cover Thickness (mm) | Width (mm) | Length (m) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | ||||
| EP80 | 0.60 | 160 | 240 | 320 | 400 | 480 | 2.0 - 8 | 0 - 4.5 | 400 - 2500 | ≤300 |
| EP100 | 0.75 | 200 | 300 | 400 | 500 | 600 | 400 - 2500 | |||
| EP150 | 1.00 | 300 | 450 | 600 | 750 | 900 | 400 - 2500 | |||
| EP200 | 1.10 | 400 | 600 | 800 | 1000 | 1200 | 2.0 - 8 | 0 - 4.5 | 500 - 2500 | |
| EP250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | 500 - 2500 | |||
| EP300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | 500 - 2500 | |||
| EP350 | 1.45 | - | 1050 | 1400 | 1750 | 2100 | 2.0 - 8 | 0 - 4.5 | 800 - 2500 | |
| EP400 | 1.55 | - | - | 1600 | 2000 | 2400 | 2.0 - 8 | 0 - 4.5 | 1000 - 2500 | |
| EP500 | 1.70 | - | - | 2000 | 2500 | 3000 | 2.0 - 8 | 0 - 4.5 | 1000 - 2500 | |
