Key Features:
1. Efficiency: The three-stage top scanning system significantly improves barcode recognition rates to over 99%. Dual swing wheels increase processing efficiency by 3-5 times compared to manual operations, handling 1,500-3,000 parcels per hour.
2. Accuracy: The DWS system automatically collects weight, volume, and barcode info. Servo-controlled swing wheels achieve ±5mm positioning accuracy, reducing mis-sorting to below 0.1%.
3. Flexibility: Compatible with parcels from 10cm to 120cm in length and weights from 0.1kg to 50kg. Supports integration with WMS and TMS systems.
Application Introduction:

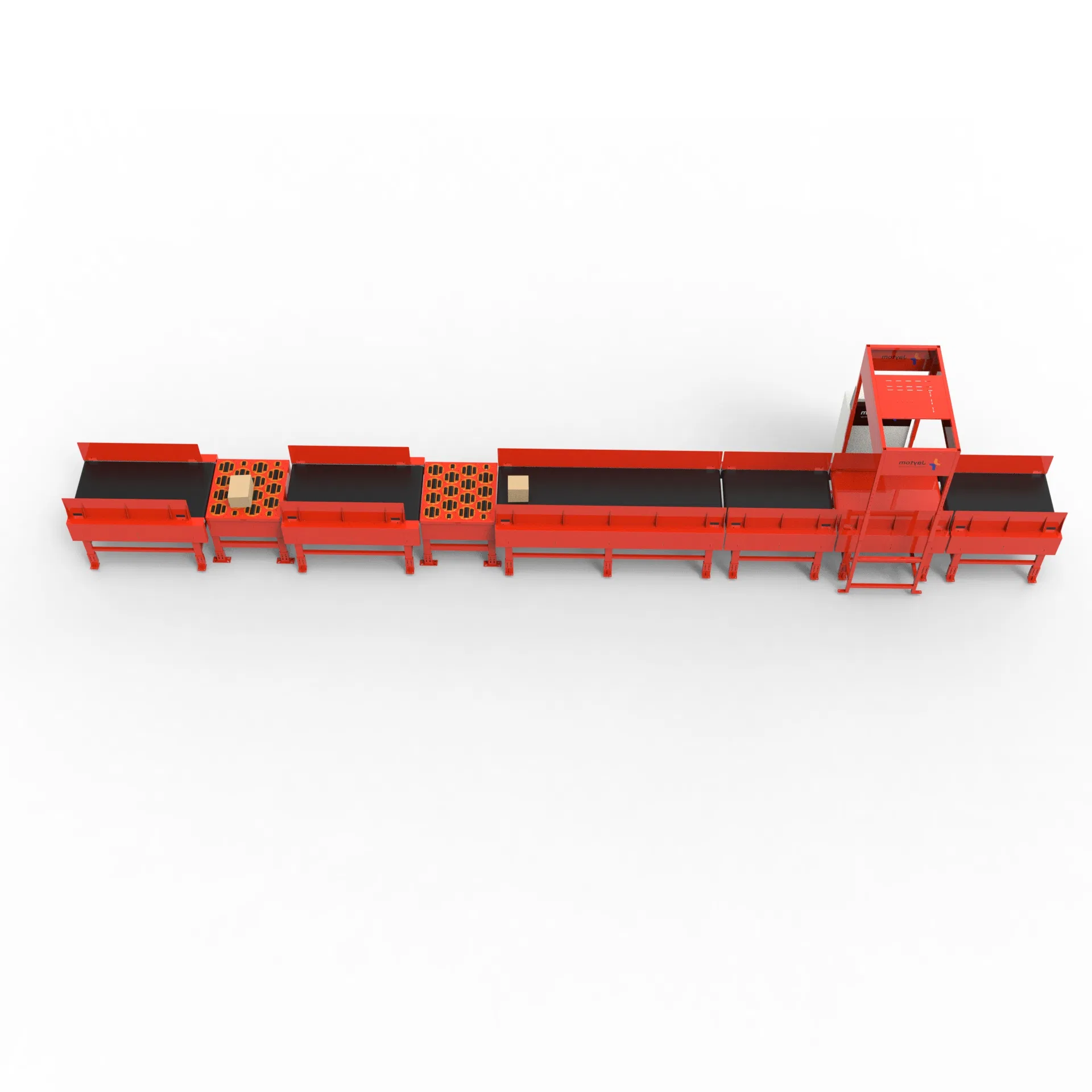

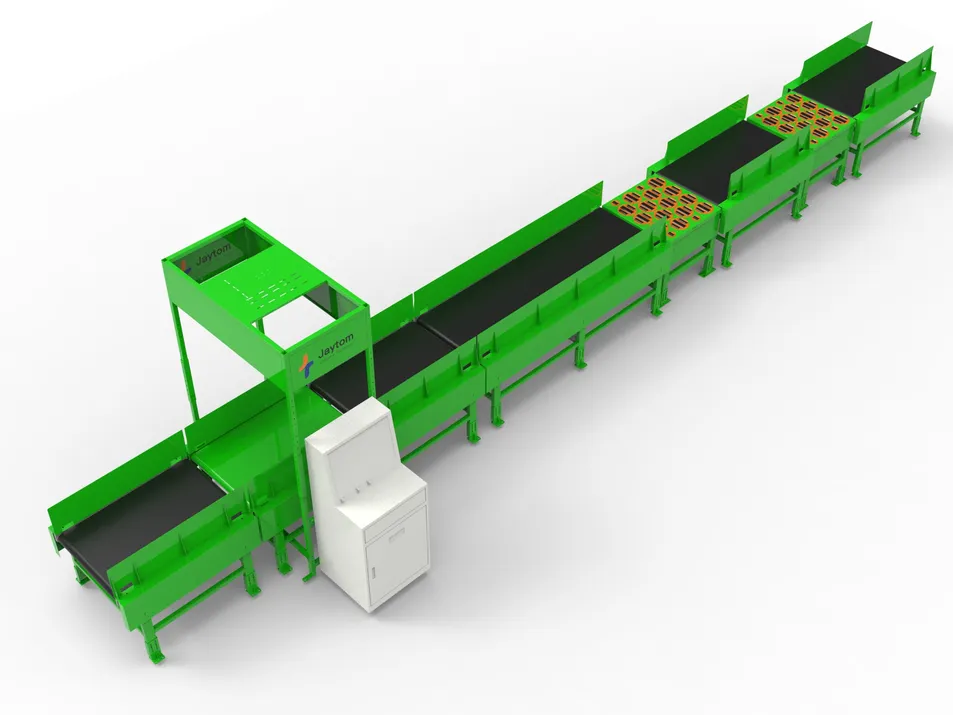

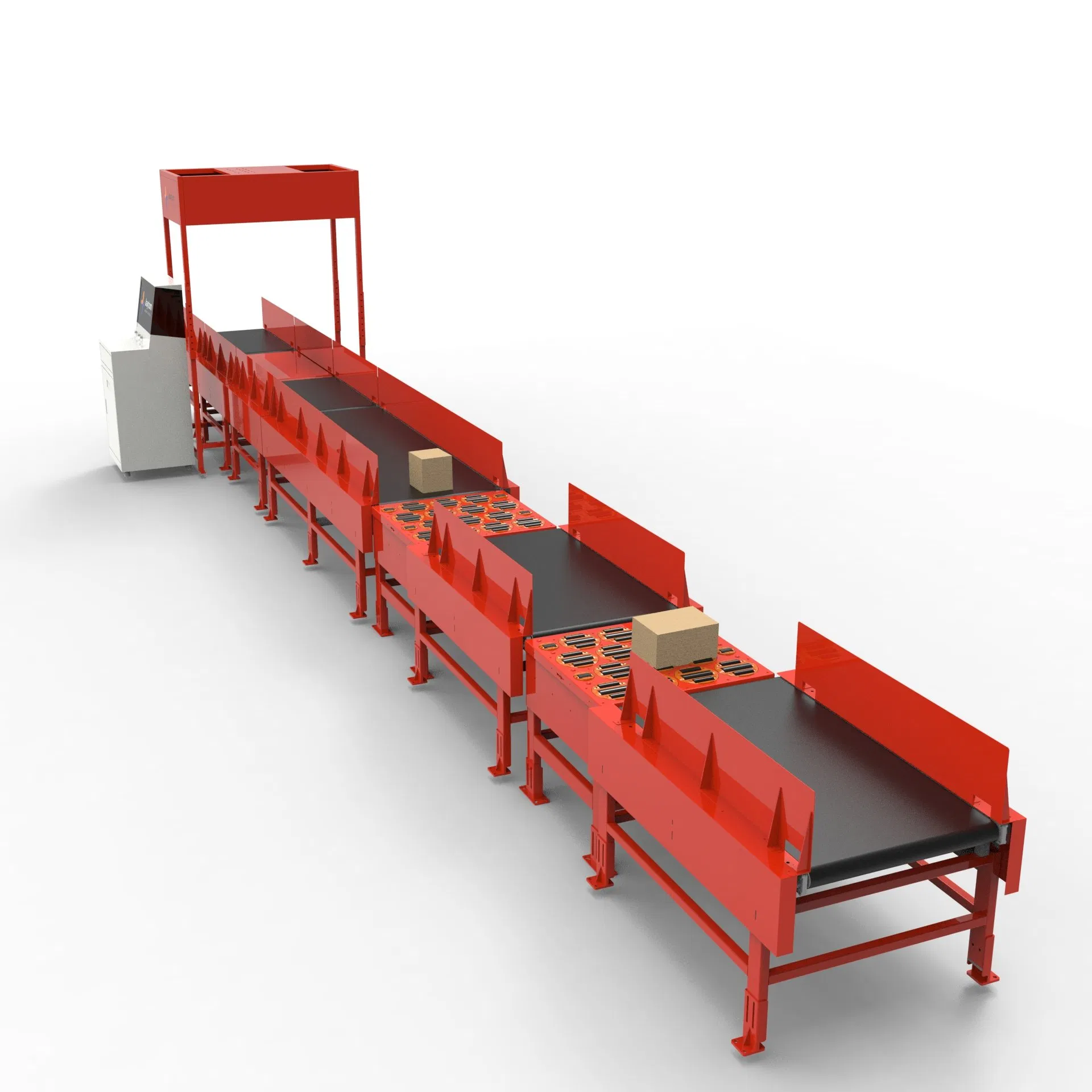

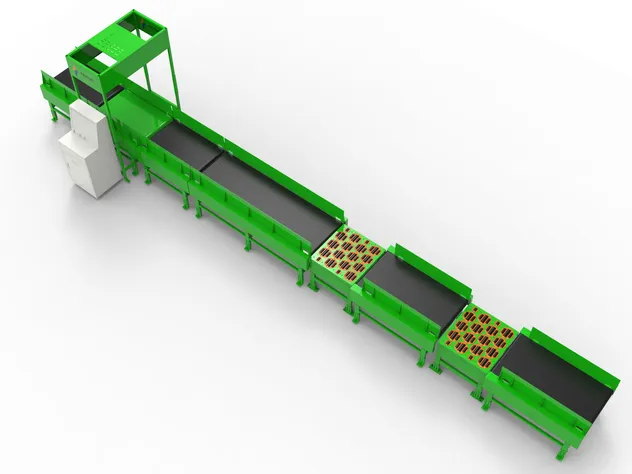

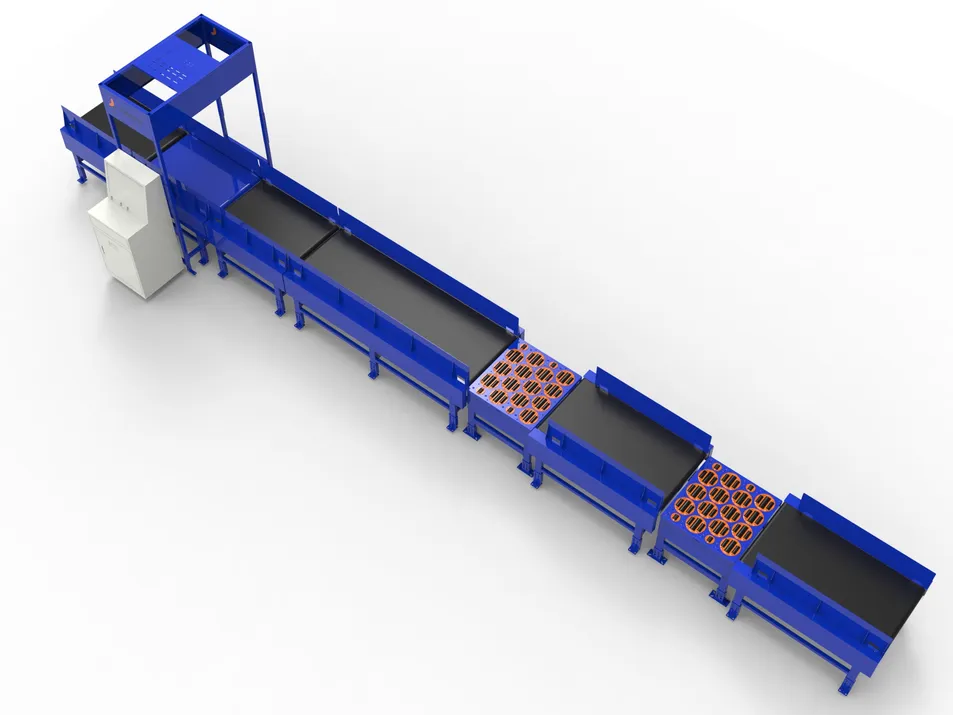

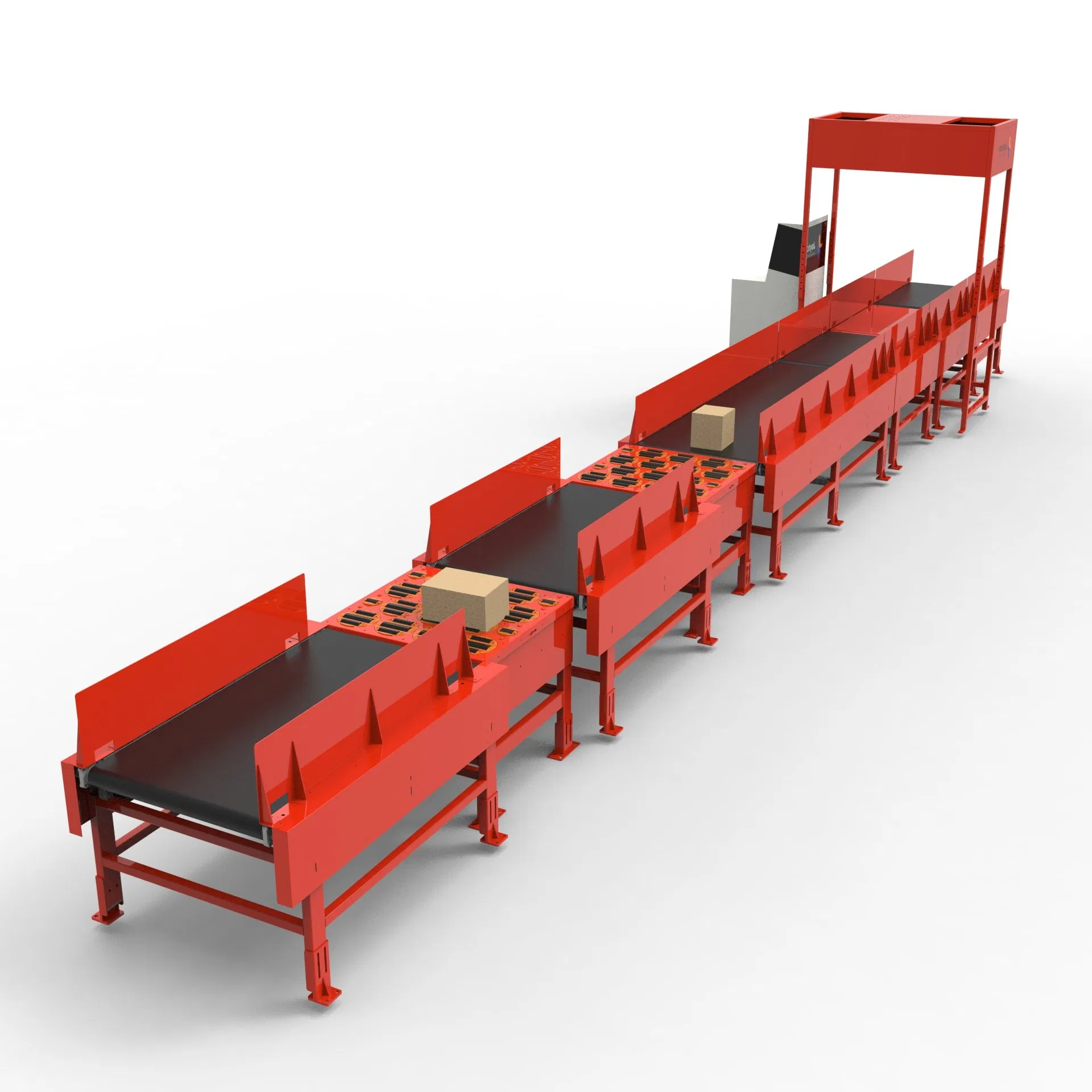

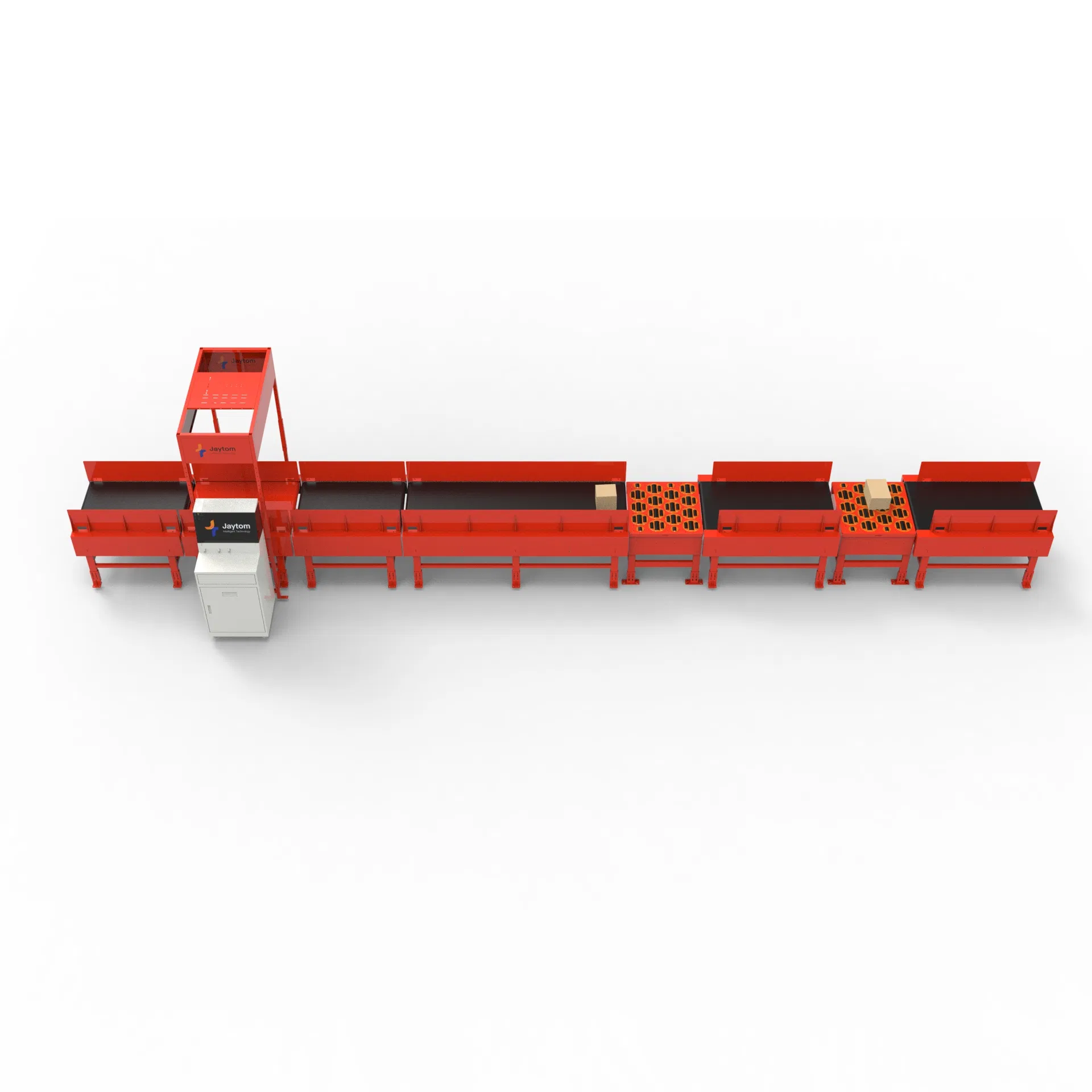

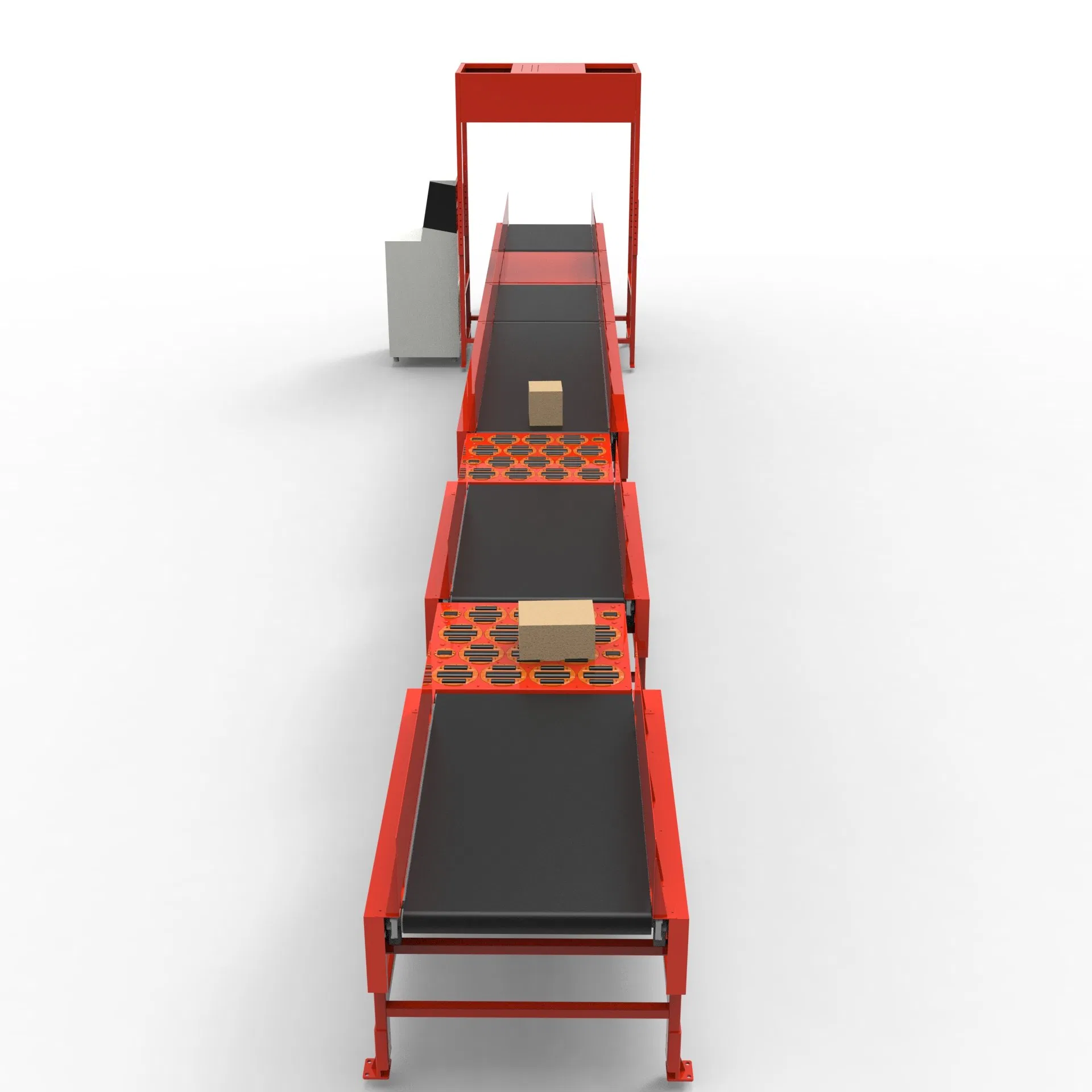

Features a three-section design: "package pulling + weighing/scanning + buffer" combined with dual swing wheels. Suitable for e-commerce sorting, logistics transfer warehouses, and retail assembly lines. Replaces manual operations and improves efficiency by more than 3 times.
| Category | Component / Parameter | Function / Value |
|---|---|---|
| Solution Components | DWS Parcel Pulling Section | Adjust parcel posture for weighing entry |
| DWS Single-scale Weighing | Automatic weight detection and recording | |
| DWS Buffer Section | Information processing of scanned items | |
| Wheel Sorter | Automatic High-speed Sorting | |
| Performance | Speed | 1.5 ~ 2m/s |
| Efficiency | 6000 units/h | |
| Field of View | No Blind Area | |
| Applicability | Parcel Size | W100×L100×H50 to W800×L1500×H700 mm |
| Suitable Type | Various parcels with flat surface waybills |
Our system integration focuses on embedded control and provides overall logistics solutions supported by barcode scanning, 3D visual measurement, and weighing technologies. Our R&D team consists of experienced engineers specialized in image processing, machine learning, and automation control.

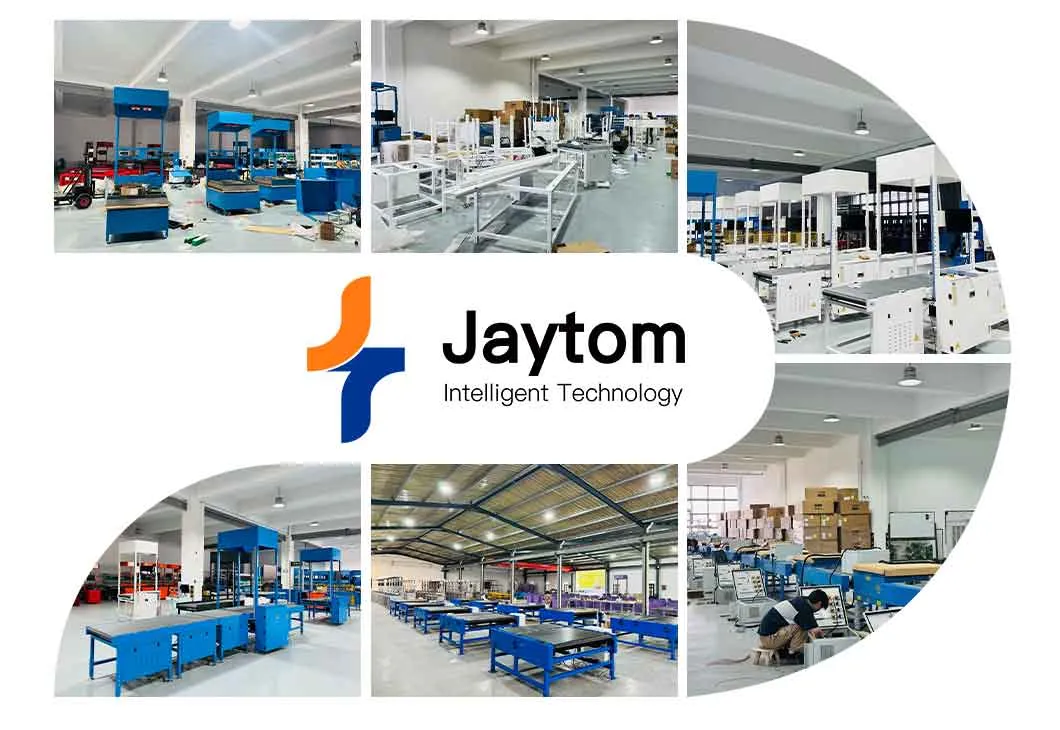

The facility includes specialized areas for prototype assembly and sample display to ensure high-quality production standards. We hold multiple product patents and have passed ISO9001 system certification.
